Peri RCS P - Mounting Scaffold Tubes Ø 60 mm; Mounting the safety net

80.2
88
80.1
3 / 4
83.1
a
92
Mounting Scaffold Tubes Ø 60 mm
1. Install scaffold tube pieces Ø 48 mm
(80.1) L = 80 mm with Spacers M20
(3) or M24 (4) in the Enclosure Post (1).
2. Mount Scaffold Tube Ø 60 mm on
the scaffold tube pieces with Swivel
Coupler 60/48. Tighten coupling nut
with 50 Nm.
(Fig. C3.09b)
Mounting the safety net
1. Secure the safety net according to
the manufacturer's specifications.
2. Ensure bottom edge of the safety
nets reach to the building.
3. Ensure there is a sufficient overlap
with other enclosure parts.
C3 Assembly of the Enclosure

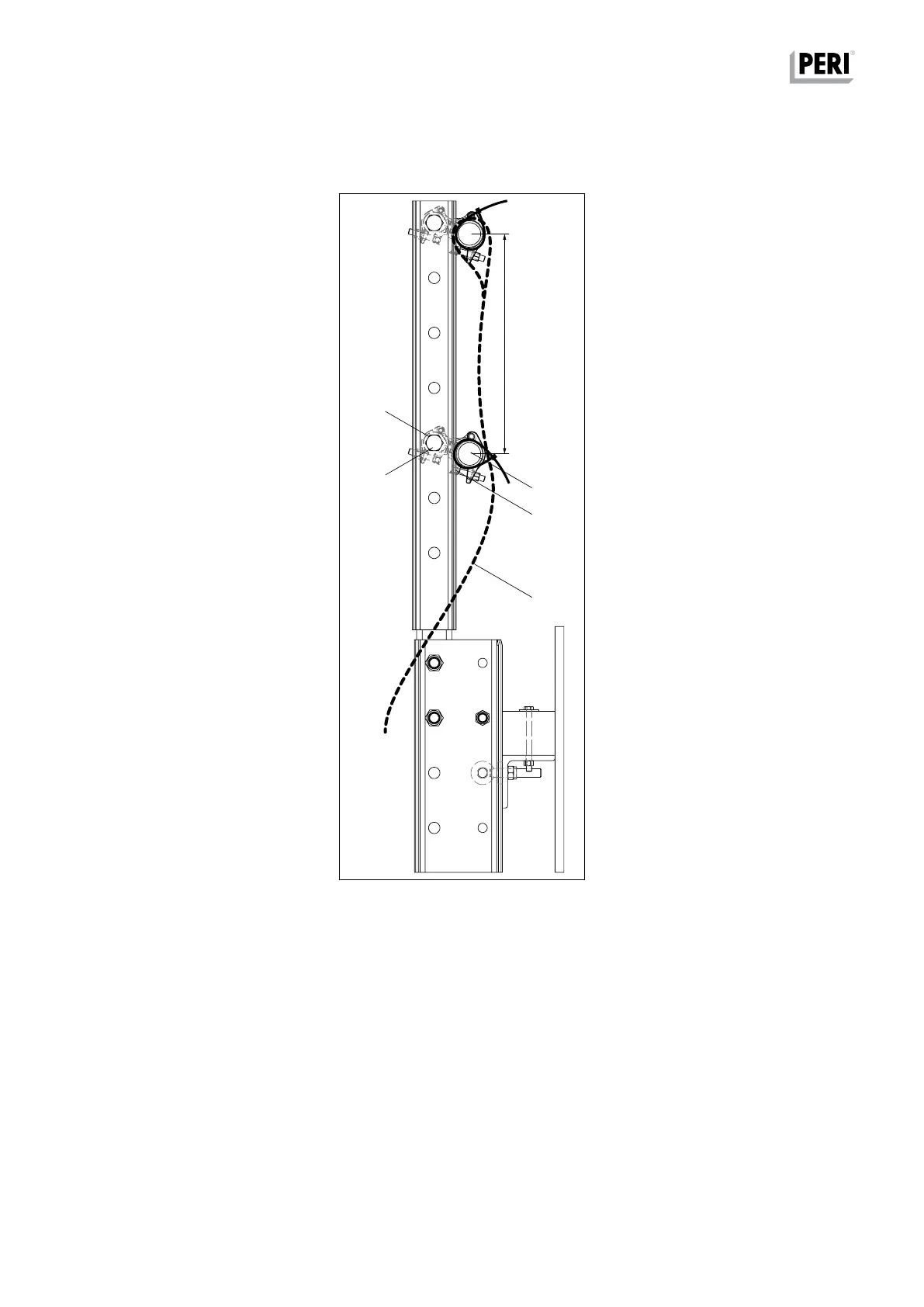

Fig. C3.09b
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
