Peri RCS P - Additional Finishing Platforms; Components; Version 1

10
21
2
33
B1 Planning the Supporting Structure
Additional Finishing Plat-
forms
Only for Versions 2 and 3 with the
Crossbar RCS 103. See Section A1
System Overview, Fig. A1.02 + A1.03.
Finishing platforms can be installed
forwork operations in the area of the
bottom Slab Shoe.
The execution takes place correspond-
ing to the working platforms positioned
above.
Screw in additional Crossbars RCS 103
(10) into the Climbing Rail (2) and the
extension of the Enclosure Post.
Components
1 Enclosure Post
2 Climbing Rail
2.3 Climbing Rail RCS 248
2.4 Climbing Rail RCS 348
10 Crossbar RCS 103
14 Enclosure Beam (timber)
21 Climbing Rail Connector RCS 100
22 Climbing Rail Connector RCS 33
Version 1
If only a short extension of Enclosure
Post 1 is required, the finishing plat-
form can be suspended by means of a
Climbing Rail Extension 100 RCS (21).
(Fig. B1.08)

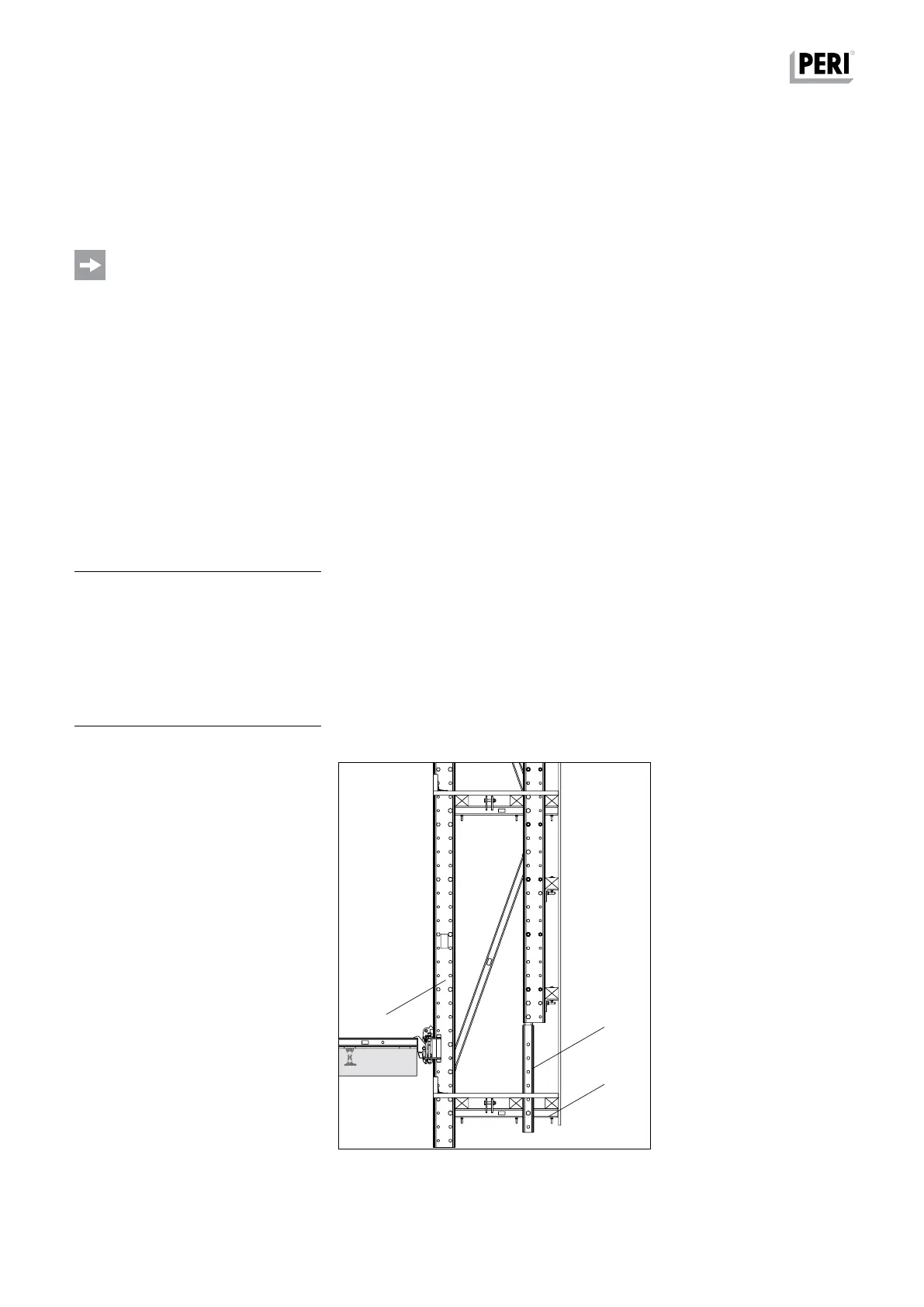

Fig. B1.08
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
