B1 Planning the Supporting Structure
Additional Spacers
Spacers are mounted at a distance of
50 cm on the Climbing Rails.
Additional Spacers M20-82 (3) can be
installed on the Climbing Rail (2) as
climbing bolts.
This allows the height of the climbing
enclosure and working platform to be
adjusted in increments of 12.5 cm.

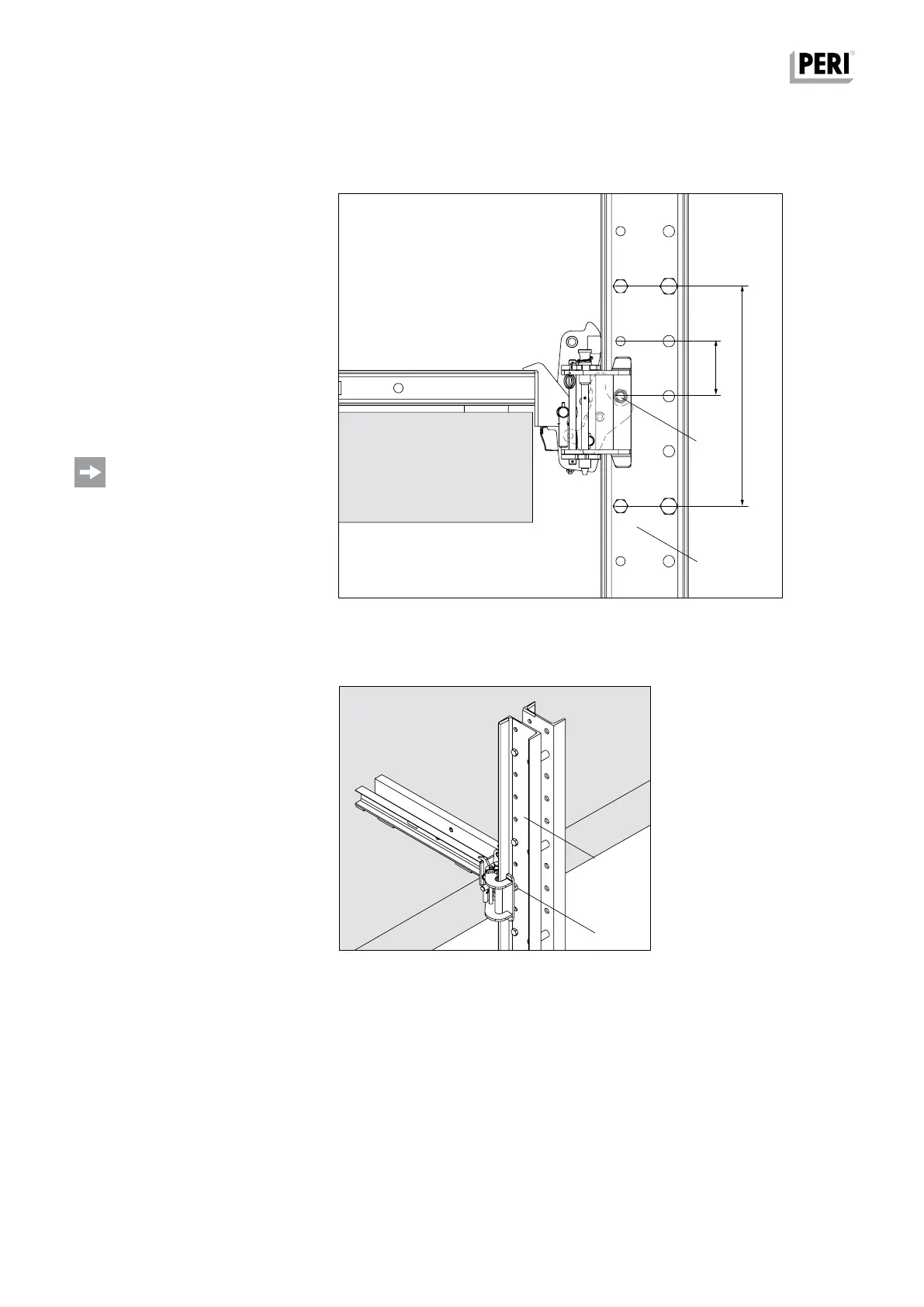

(Fig. B1.06)
Spacers are used to support the climb-
ing enclosure on Slab Shoes during
working operations.
PERI recommends mounting an addi-
tional Spacer M20-82 for the bottom
Slab Shoe for standard storey heights
that are multiples of 50 cm.
This ensures a definite bearing on the
planned Slab Shoe without having to
deactivate the other Slab Shoes.
Fig. B1.06
Fig. B1.07
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
