C3 Assembly of the Enclosure
Mounting the Trapezoidal
Metal Sheeting
– To provide protection against falling
objects: in the area of the working
platforms and hinged covers, cover
the cavities between the trapezoidal
metal sheeting and the timbers.
– The dimensions for cutting the trape-
zoidal metal sheeting, as well as
screw spacing e, are provided in the
site-specific assembly drawings.
Components
1 Climbing Rail RCS
14 Enclosure Beam (timber)
19 Enclosure (trapezoidal metal
sheeting)
99 TSS-Torx 6 x 60
Assembly
1. Cut the trapezoidal metal sheeting
according to the plans, position on
the Enclosure Beams and align.
2. Mark the position of the Enclosure
Beam, e.g. with a chalk line, and
mark bolt positions according to
site-specific assembly drawings.
3. Align the trapezoidal metal sheeting
and fix to the Enclosure Beam using
connection means recommended by
the trapezoidal sheeting manufacturer.
4. Cover the cavities between the
timber and trapezoidal sheeting,
e.g.with Elastomer cover strip.

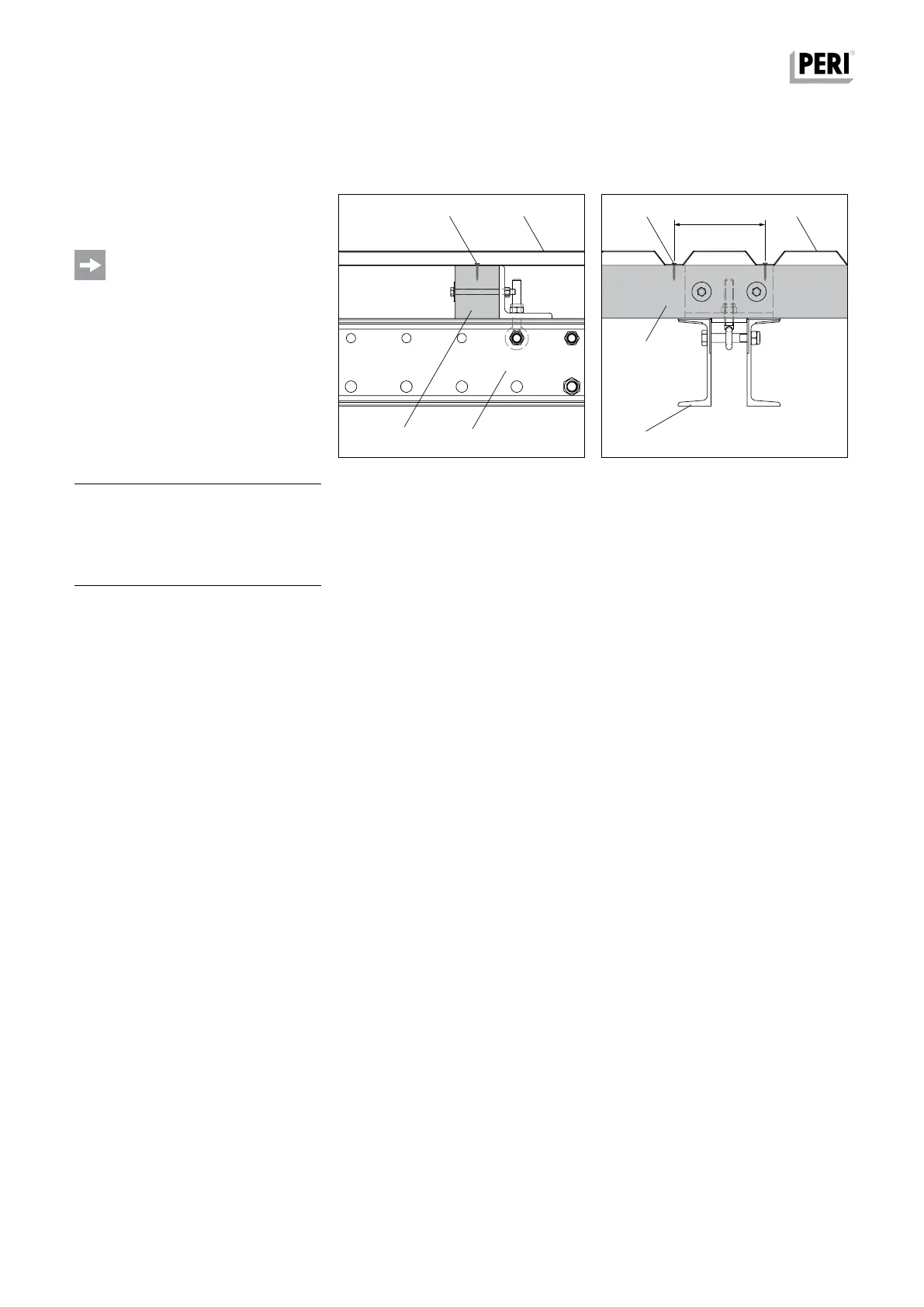

(Fig. C3.07 + C3.07a)
Fig. C3.07 Fig. C3.07a
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
