80
137
137
150
80
C2 Assembly of the Working Platforms
Foldable Covers
Assembly on the scaffold tube
Components
2 Climbing Rail RCS
41 Foldable Cover (multi-layer ply-
wood sheeting)
80 Steel Scaffold Tube Ø 48.3 x 3.2
137 Scaffold Tube Connector LPS/
RCS Ø 48
138 Flap Hinge LPS D48/M10
139 Flap Safety Plate LPS D=48 RCS
150 Reinforcing Bar
Assembly
1. Mount Scaffolding Tube Connector
(137) on the Climbing Rail (2) using
fitting pin and cotter pin. The assembly
position is specified in the planning
documents.
2. As a transport locking device, screw
one reinforcing bar (150) with cam
nuts into both Climbing Rails. The re-
inforcing bar on the outer side must
not project over the enclosure.
(Fig. C2.03 + C2.03a)

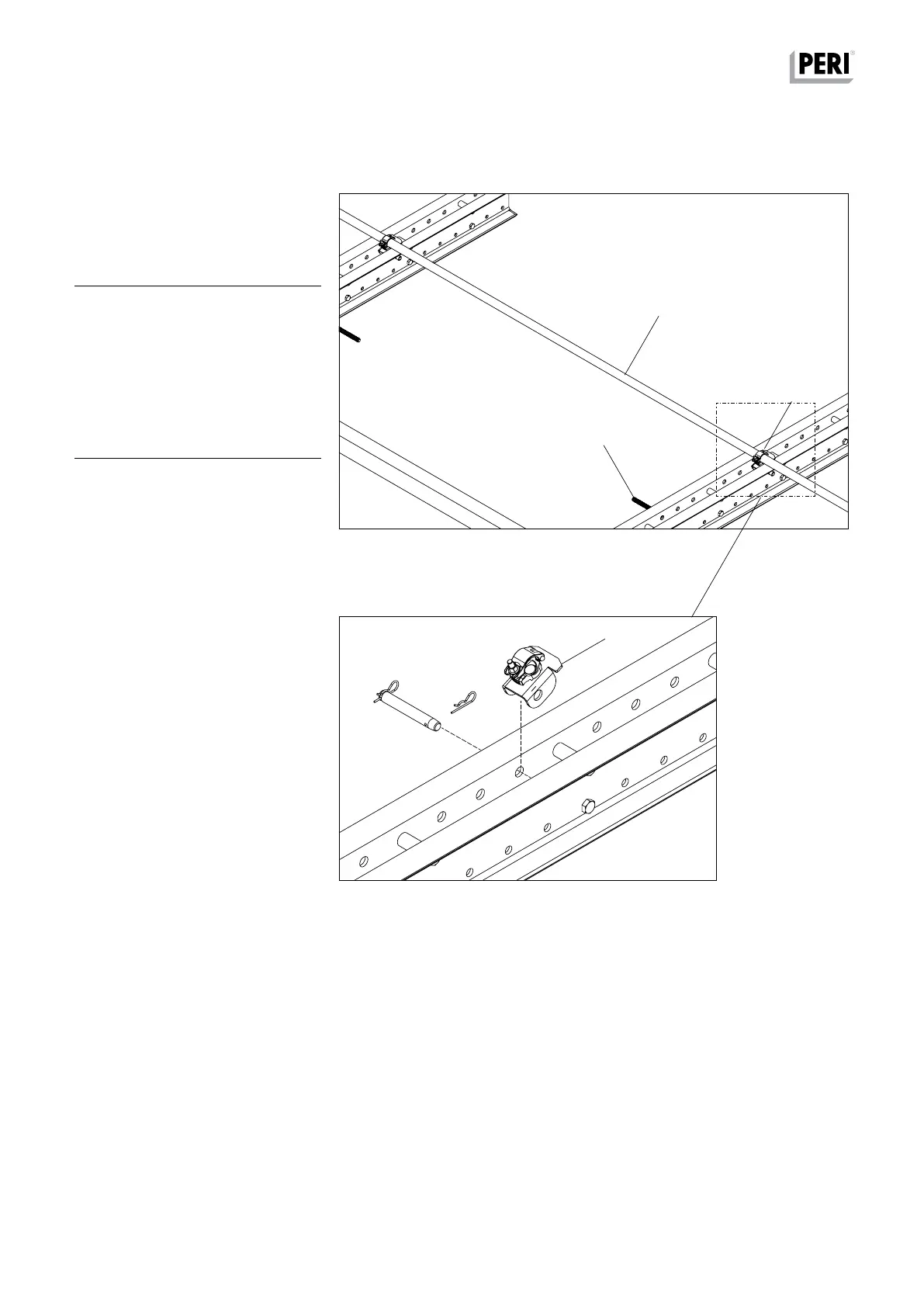

Fig. C2.03
Fig. C2.03a
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
