Peri RCS P - Suspension with the Slab Stopend Shoe; Suspension overview; Anchor fixations

2
3
45
54
45.2 45.1
44
47
45
45.1
44
a
D
L
37

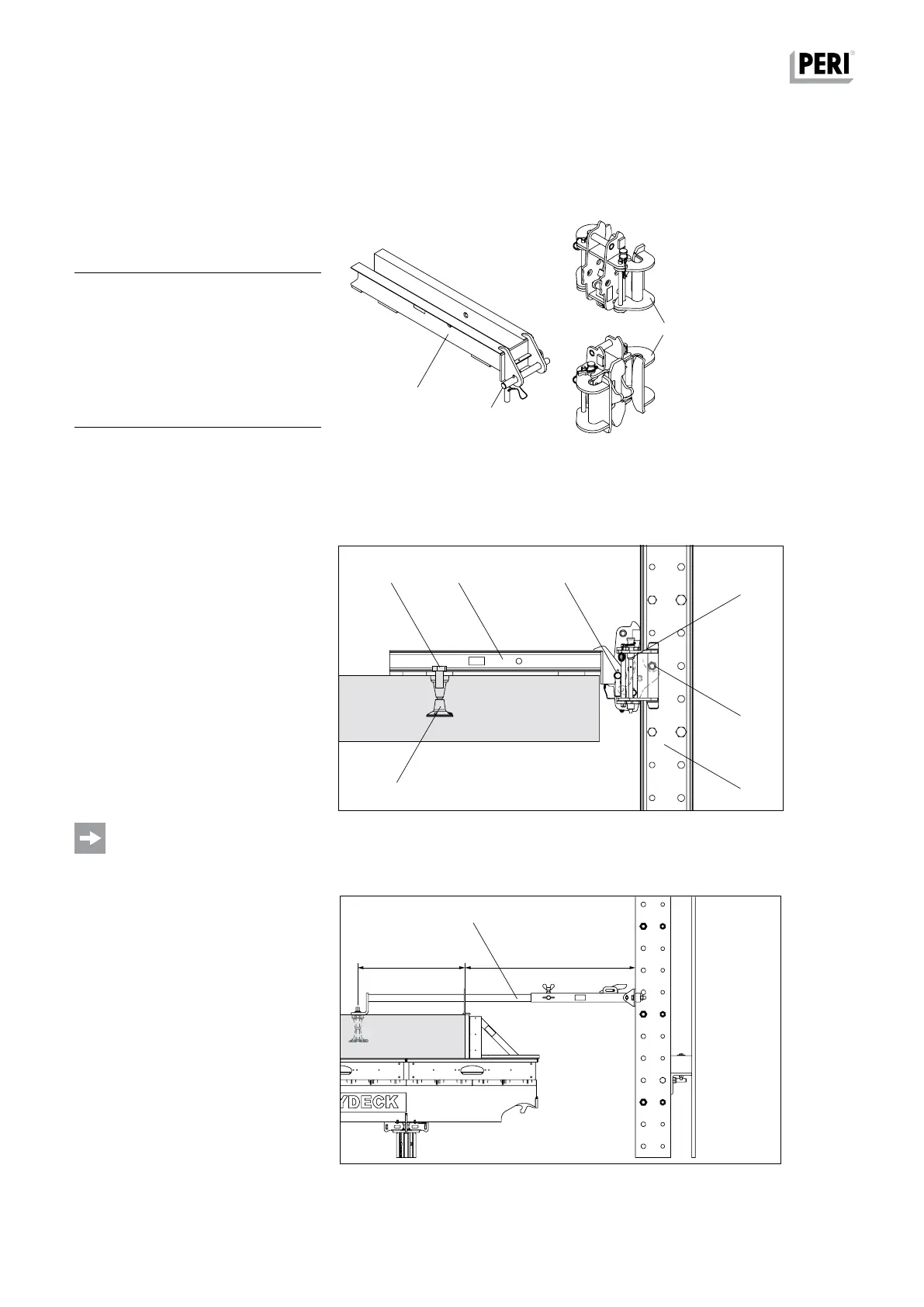

B1 Planning the Supporting Structure
Suspension with the
SlabShoe
Suspension overview
2 Climbing Rail RCS
3 Spacer M20-82
44 Climbing Shoe RCS
45 Slab Shoe RCS
45.1 Locking Pin
45.2 Bolt ISO 4014 M24 x 70-10.9
47 Anchoring
54 Slab Anchor Template 61 RCS
Anchor fixations
Anchoring M24 is possible in
3 versions:
Version 1
Screw-On Cone M24/DW 20
Version 2
Anchor Sleeve M24
Version 3
Climbing Cone-2 M24/DW 15
Anchor spacing to slab edge:
a
D
= 600 mm
Leading anchors (47) are fixed in their
respective position during concreting
by means of the Anchor Support M24
of the Slab Anchor Template RCS (54).
The Slab Anchor Template with the
support plate rests on the stopend
formwork.
The stop on the support plate creates
an impression in the concrete.
Fig. B1.12
Fig. B1.13
Fig. B1.14
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
