Peri RCS P - Assembly of Climbing Rail Connector RCS 73; Enclosure Post Version 3; Components; Assembly

24 1.2
1.2 / 1.4
26
17
17
24 + 26
Ø 21
Ø 26
71
C1 Pre-Assembly of Brackets
Assembly of Climbing Rail
Connector RCS 73
Enclosure Post Version 3:
The Climbing Rail RCS 748 (1.2) is
extended with a Climbing Rail RCS 148
(1.4) or 248 (1.3). For connecting the
Climbing Rails, mount a Climbing Rail
Connector RCS 73 (17).
Components
1.2 Climbing Rail RCS 748
1.3 Climbing Rail RCS 248
1.4 Climbing Rail RCS 148
17 Climbing Rail Connector RCS 73
24 Fitting Pin Ø 21 x 120
26 Cotter Pin 4/1
Assembly
1. Remove or re-position Spacers in
the Climbing Rail that are in the way.
See "Preparing the Climbing Rails" on
page 66.
2. Insert Climbing Rail Connector (17)
into the Climbing Rail RCS 748 (1.2)
and connect with 2x fitting pins Ø 21
(24) in holes Ø 21.
3. Insert short Climbing Rail RCS (1.3 /
1.4) into the Climbing Rail Connector
and connect with 2x fitting pins Ø 21
in holes Ø 21.
4. Secure all fitting pins with cotter
pins (26).

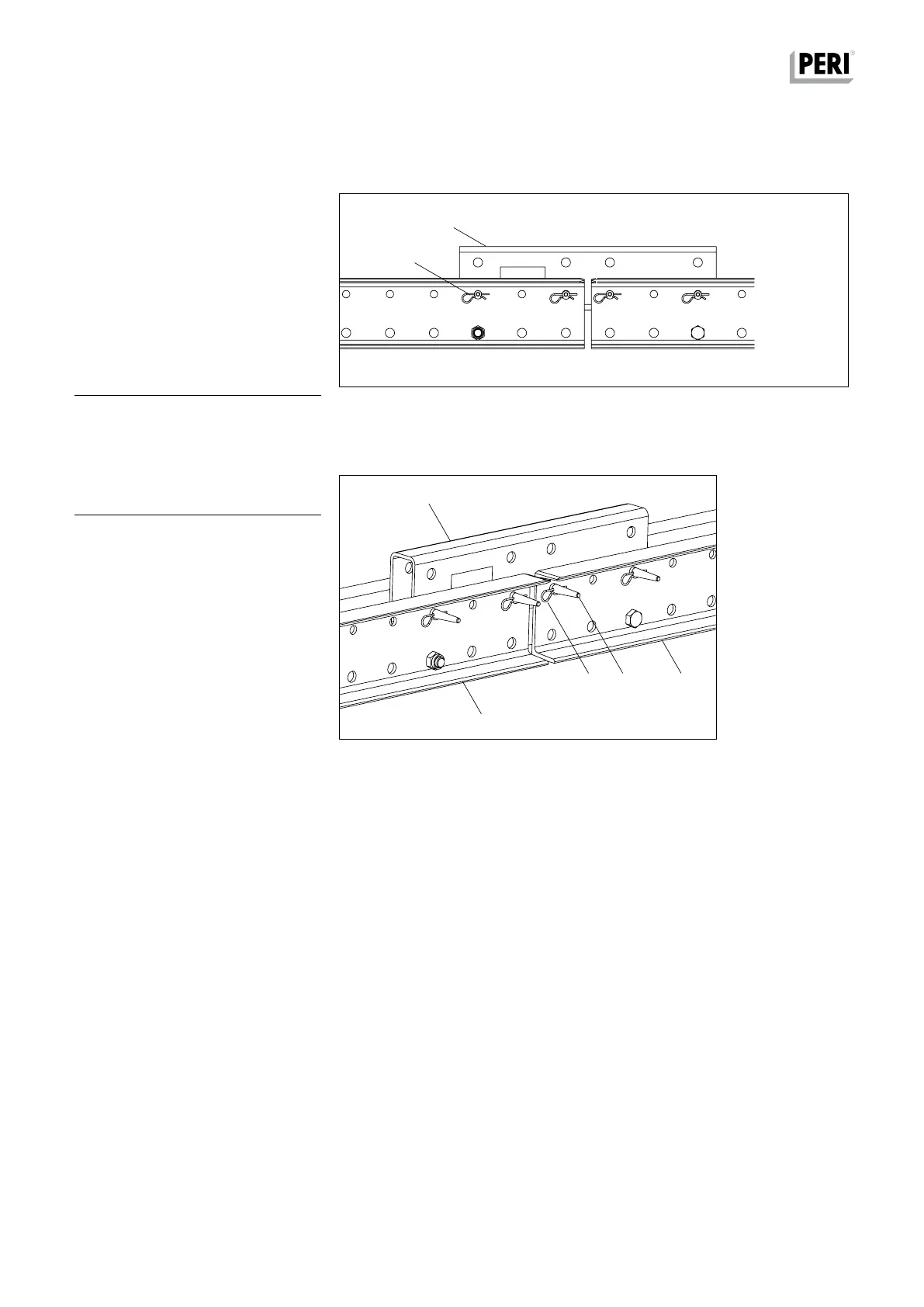

Fig. C1.05
Fig. C1.05a
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
