B2 Planning the Units
PERI recommends a distance between
the climbing units of 50 mm.
For climbing units in an operational
status, fix immovable covering over
any gaps e.g. with:
– boards which are screwed on and
that are removed or folded up during
climbing.
– Alternatively, gaps can be covered
with rubber lips.
In order to ensure a simple moving pro-
cedure with the crane without jamming
the Enclosure Beams (14), protection
edges (20) can be arranged on the
front side. The width (b
1
) depends
on the design of the enclosure with
multi-layer plywood sheeting (18.1) or
trapezoidal metal sheets (19).
Components
14 Enclosure Beam (timber)
18 Enclosure (multi-layer plywood
sheeting)
19 Enclosure (trapezoidal metal
sheeting)
20 Protection Edge

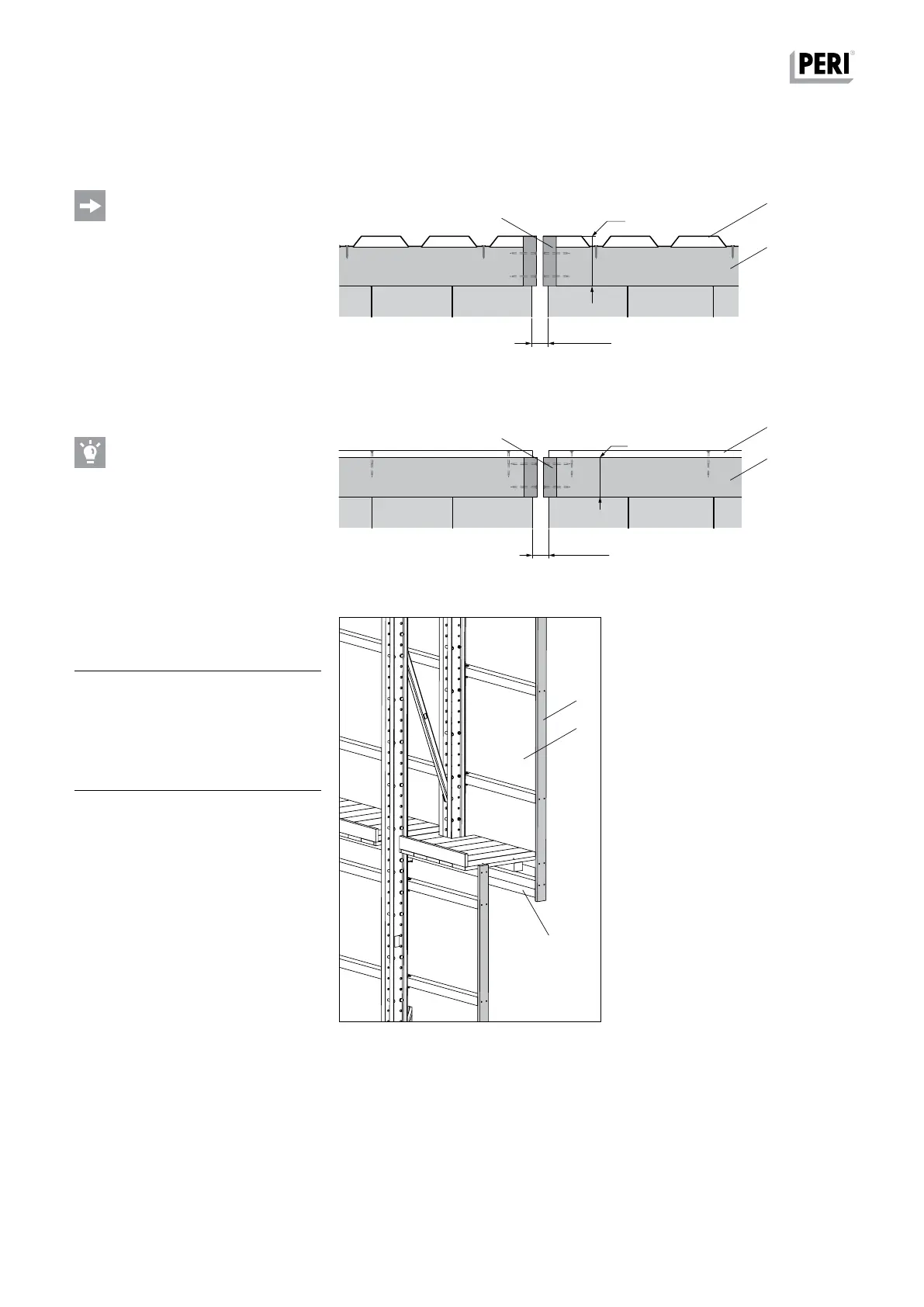

Fig. B2.07
Fig. B2.08
Fig. B2.09
RCS P Climbing Protection Panel
Instructions for Assembly and Use - Standard Configuration
