Peri RCS P - Mounting the Framework; Components; Assembly

10
10
40
12
91
95
96
97
2 10
12
2
2
94
73
C1 Pre-Assembly of Brackets
Mounting the Framework
Components
2 Climbing Rail RCS
10 Crossbar RCS 103
12 Diagonal Strut RCS 212
40 Girder (timber)
91 Bolt ISO 4017 M12 x 240-8.8
94 Bolt ISO 4014 M24 x 130-8.8
95 Hex. Nut ISO 7042 M24-8
96 Nut ISO 4032 M12-8
97 Washer ISO 7093 200HV, A12
Assembly
1. Bolt on Crossbar (10) and Diagonal
Strut (12) with the provided bolts
M24 x 130 (94) and nuts M24 (95).
Fold down the Diagonal Strut.
2. Position Crossbar (10) vertically and
secure the Girder (40) to the Cross-
bar. Preparing the Girder, see Sec-
tion "C2 Assembly of the
Working Platforms" on page 80.
3. Temporarily clamp Crossbars on
which no working platform is mount-
ed by means of a screw clamp and
timber.

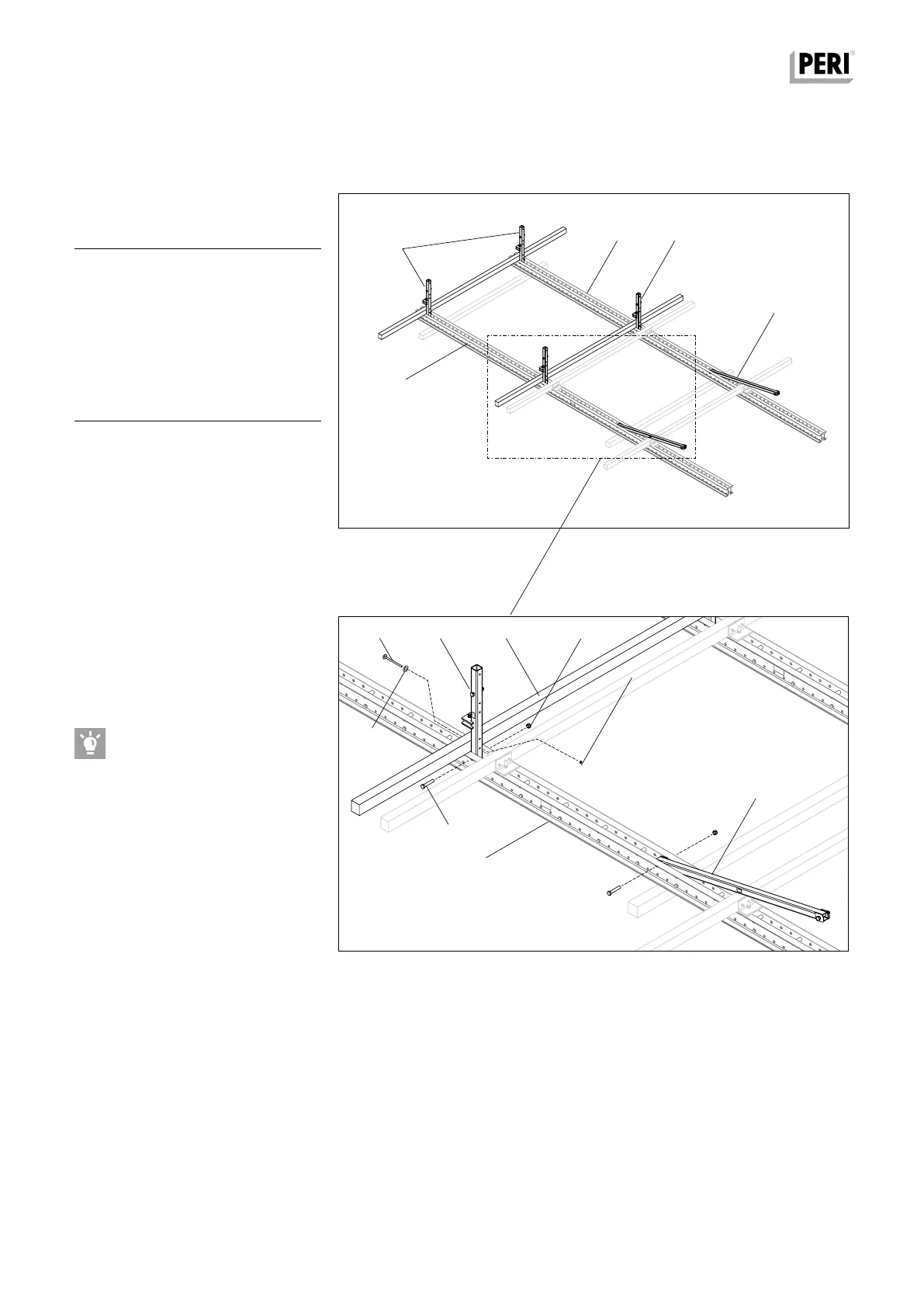

(Fig. C1.07 + C1.07a)
Depending on the work organisation,
pre-assembled working platforms can
be mounted up to the outer Decking
Transom.
Fig. C1.07
Fig. C1.07a
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
