C1 Pre-Assembly of Brackets
Mounting the Enclosure Post
Components
1.2 Climbing Rail RCS 748
2 Climbing Rail RCS
10 Crossbar RCS 103
94 Bolt ISO 4014 M24 x 130-8.8
95 Hex. Nut ISO 7042 M24-8
12 Diagonal Strut RCS 212
40 Girder (timber)
Assembly
1. Position Climbing Rail RCS (1.2) as
Enclosure Post, with Spacer Ø 26
mm below, on the Crossbar (10)
from above.
2. Secure Enclosure Post on Crossbar
using bolts M24 x 130 (94) and nuts
M24 (95). (Fig. C1.08)
3. Align Enclosure Post with the crane
until the Crossbar is in a vertical po-
sition.
4. Fold down bottom Diagonal Strut
(12) and secure with bolt (94) and
nut (95) to the Enclosure Post (1.2).
(Fig. C1.08 + C1.08a)

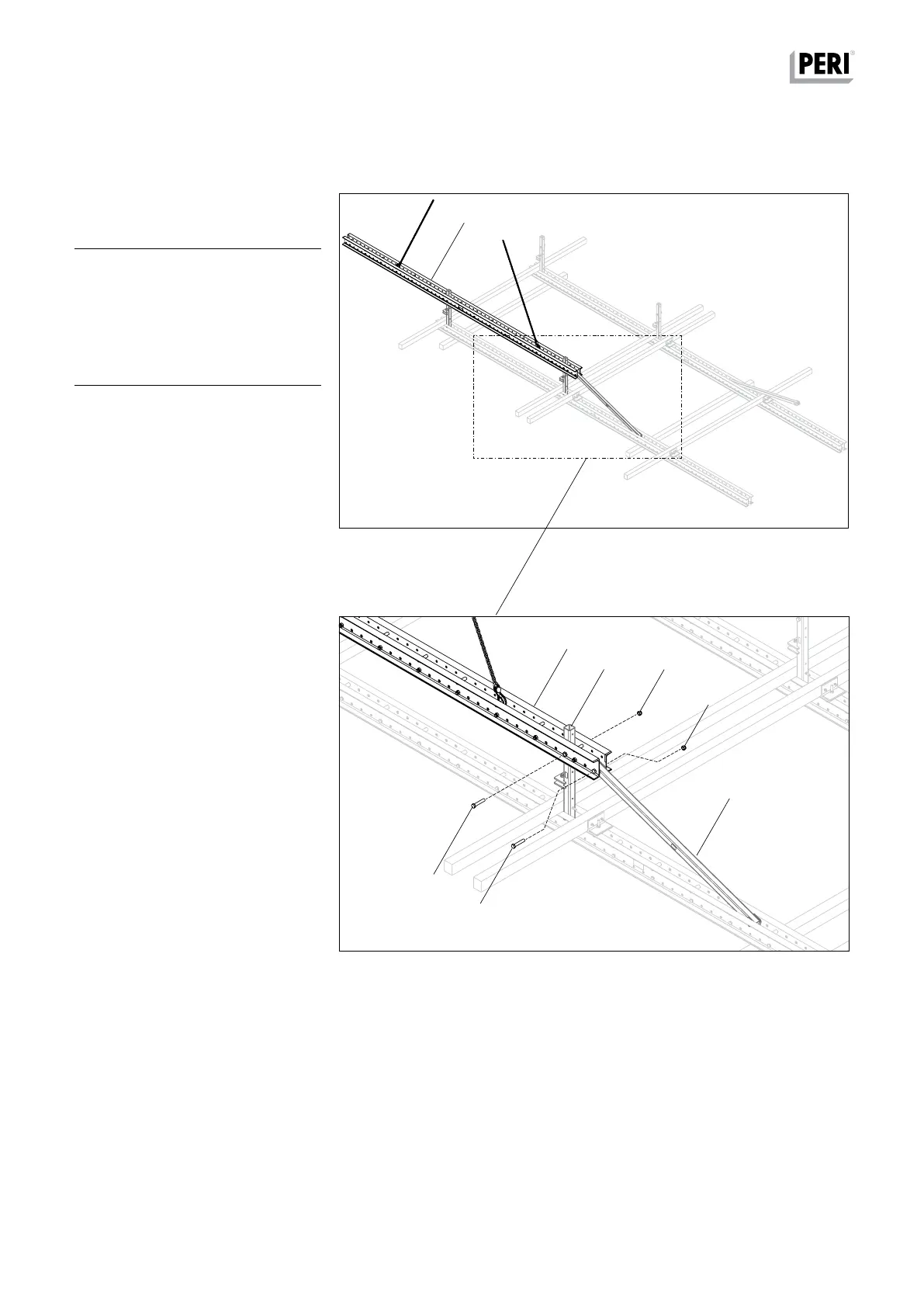

Fig. C1.08
Fig. C1.08a
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
