C1 Pre-Assembly of Brackets
5. Install middle Diagonal Strut (12) using
bolts M24 x 130 (94) and nuts M24
(95). (Fig. C1.09a)
6. Release Enclosure Post from the
crane lifting gear.
7. Mount additional Enclosure Posts.
8. Check for right-angled and parallel
alignment in all directions before pro-
ceeding with assembly operations.
For fixing, mount diagonal bracing if
necessary.
J The Bracket Framework Version 2
has now been mounted. (Fig. C1.09)

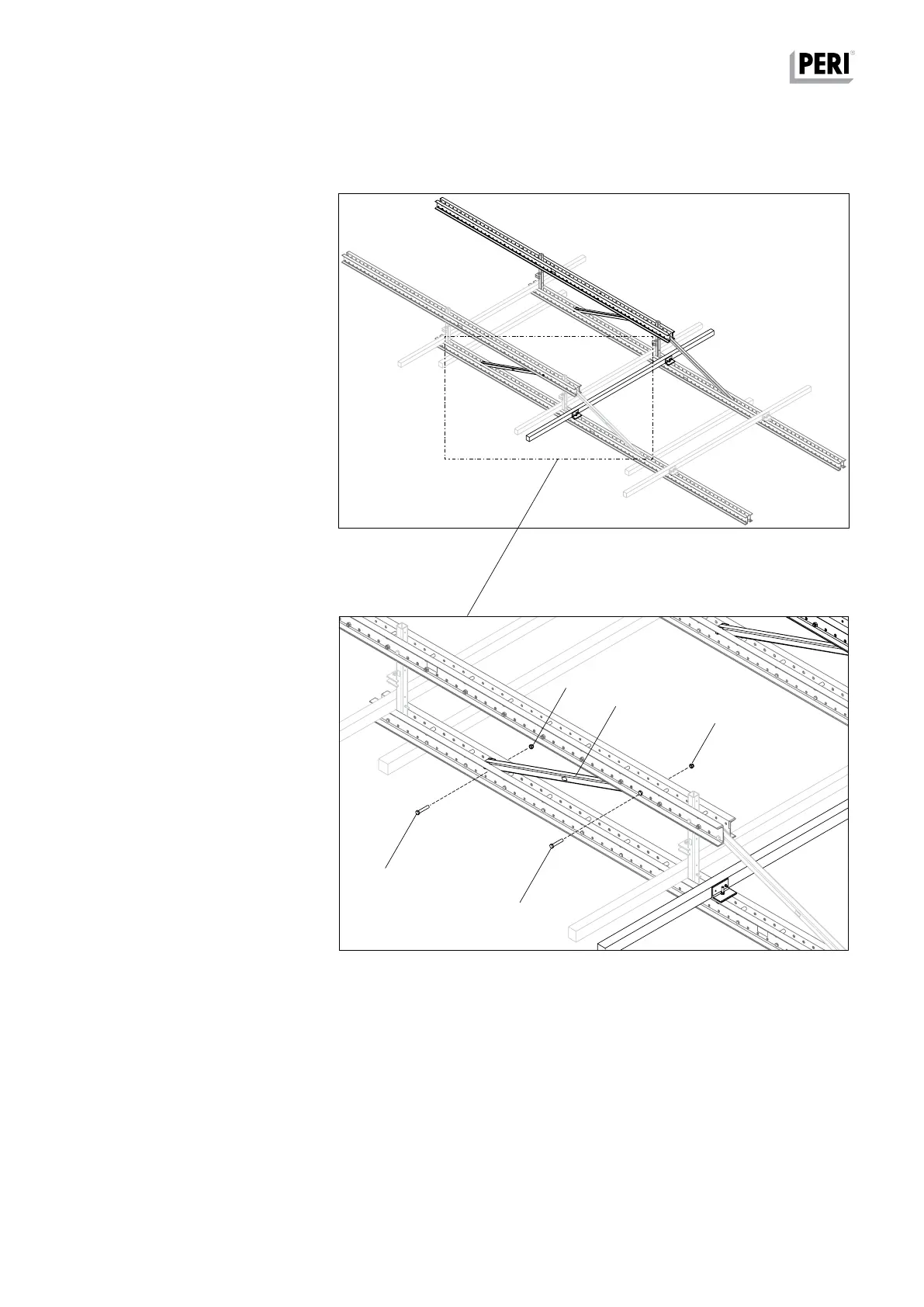

Fig. C1.09
Fig. C1.09a
