Peri RCS P - Components Step 8 - 9; Step 8

44b
136
Components Step 8 – 9
3 Spacer M20-82
41 Foldable Cover
44 Climbing Shoe RCS
60 Climbing Device RCS 50
60.1 Claw
60.6 Locking Lever
Step 8
During the final lift:
1. Extend hydraulic cylinders until all
climbing pawls of the middle
Climbing Shoes (44b) engage in
thecorrect Spacers.
(Fig. D4.09)
Are the climbing pawls of all middle
Climbing Shoes (44b) engaged?
D4 Moving with the Climbing Device

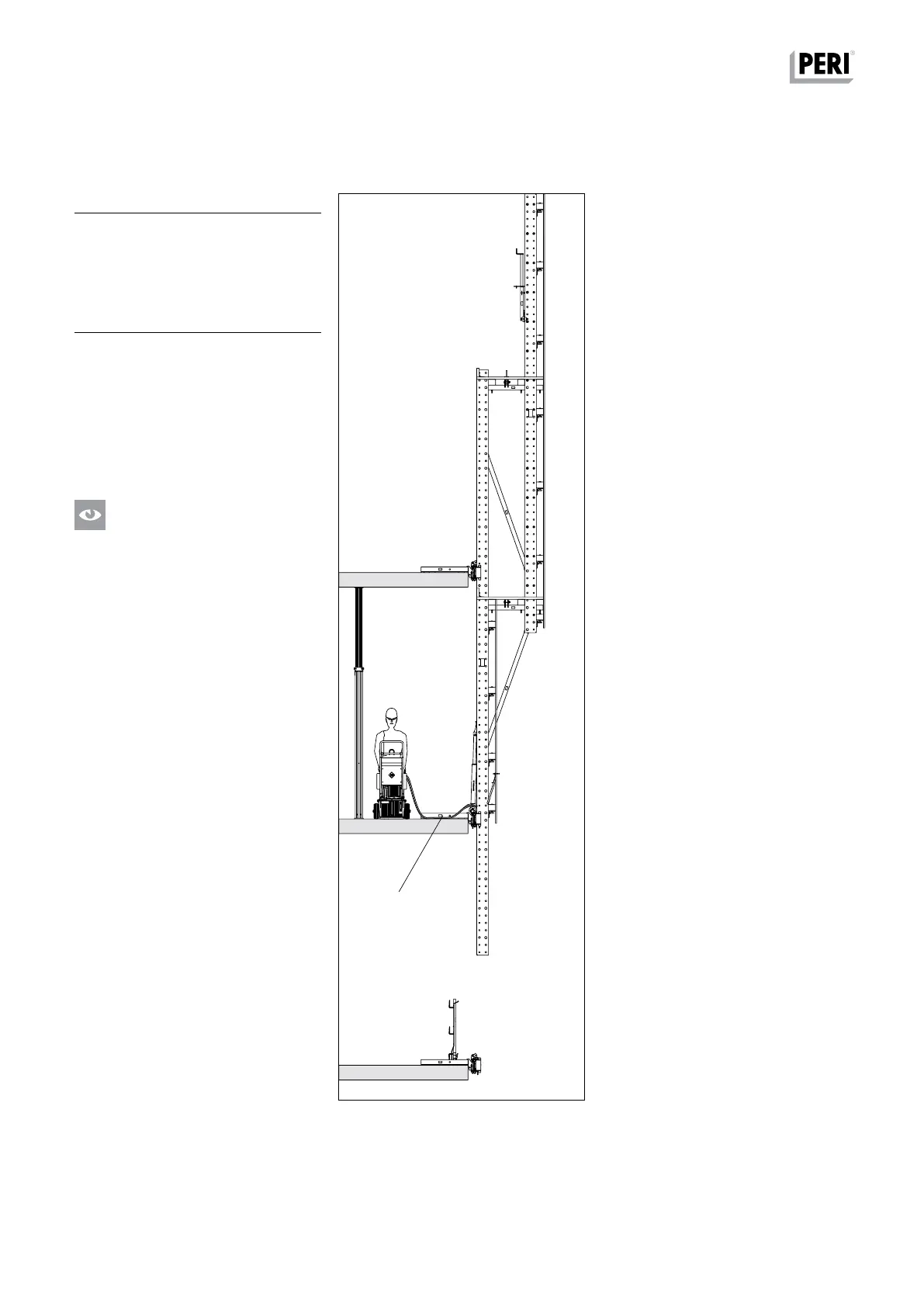

Fig. D4.09
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
