A2 Climbing Device and Hydraulics
Accessories

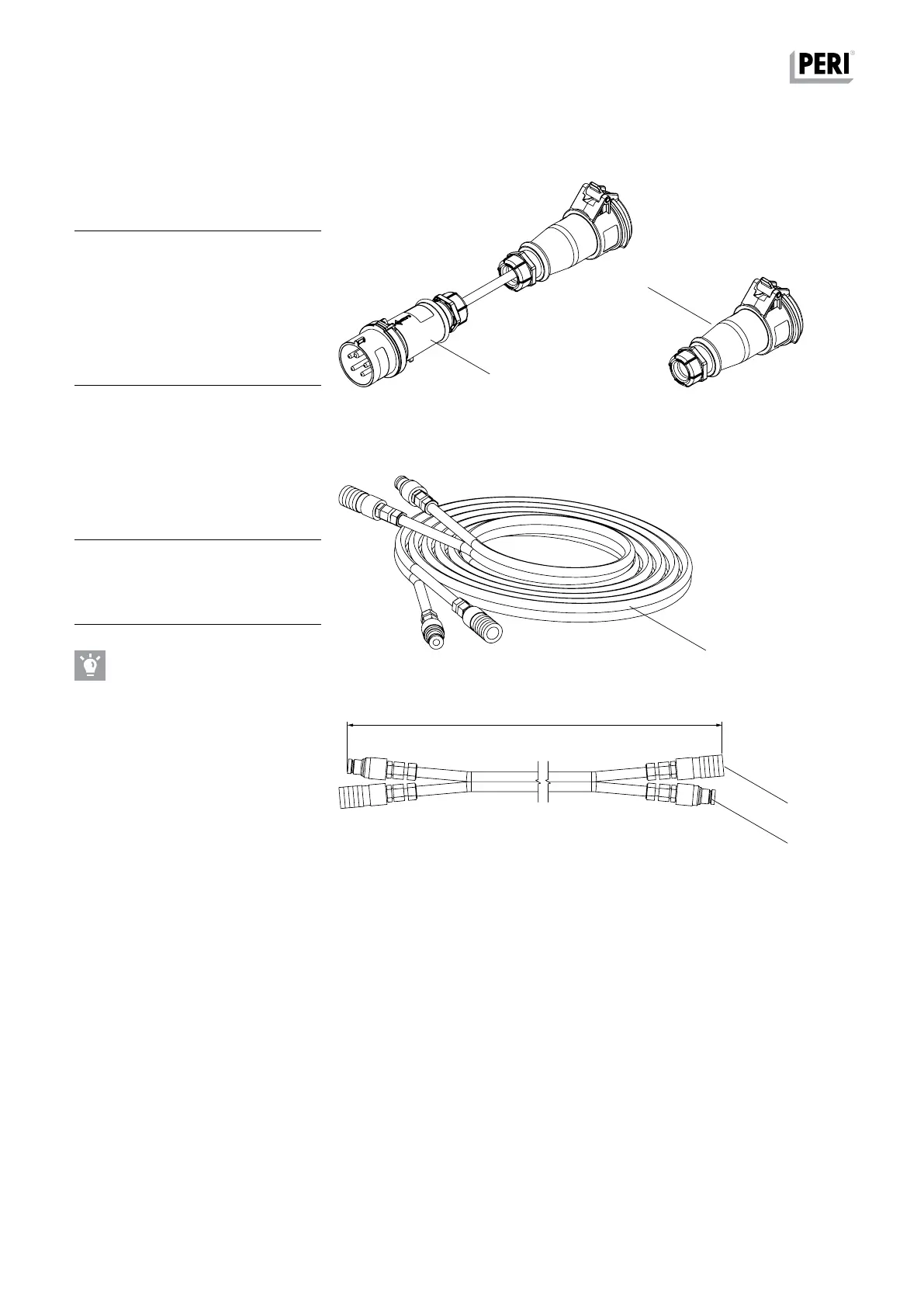

(Fig. A2.04 + A2.05)
64 Adapter Cable RCS for supply
line with CEE socket, operational
voltage 380 - 400 V / 16A, 50 Hz
65 Plug Socket RCS, black for
mounting an adapter cable car-
ried out by a qualified electrician.
Operational voltage 380 - 460 V,
50 - 60 Hz
Hydraulic hose
The hydraulic twin hose is available in
lengths of 10 m and 20 m.
(Fig. A2.06 + A2.07)
Main components
61 Hydraulic Twin Hoses RCS 10 m
62 Hydraulic Twin Hoses RCS 20 m
61.3 Hydraulic Quick Coupler (bushing)
61.4 Hydraulic Quick Coupler (nipple)
During transport, join the two coupling
ends together to protect the hoses.
Fig. A2.04
Fig. A2.06
Fig. A2.07
Fig. A2.05
L
1* safety components.
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
