C3 Assembly of the Enclosure

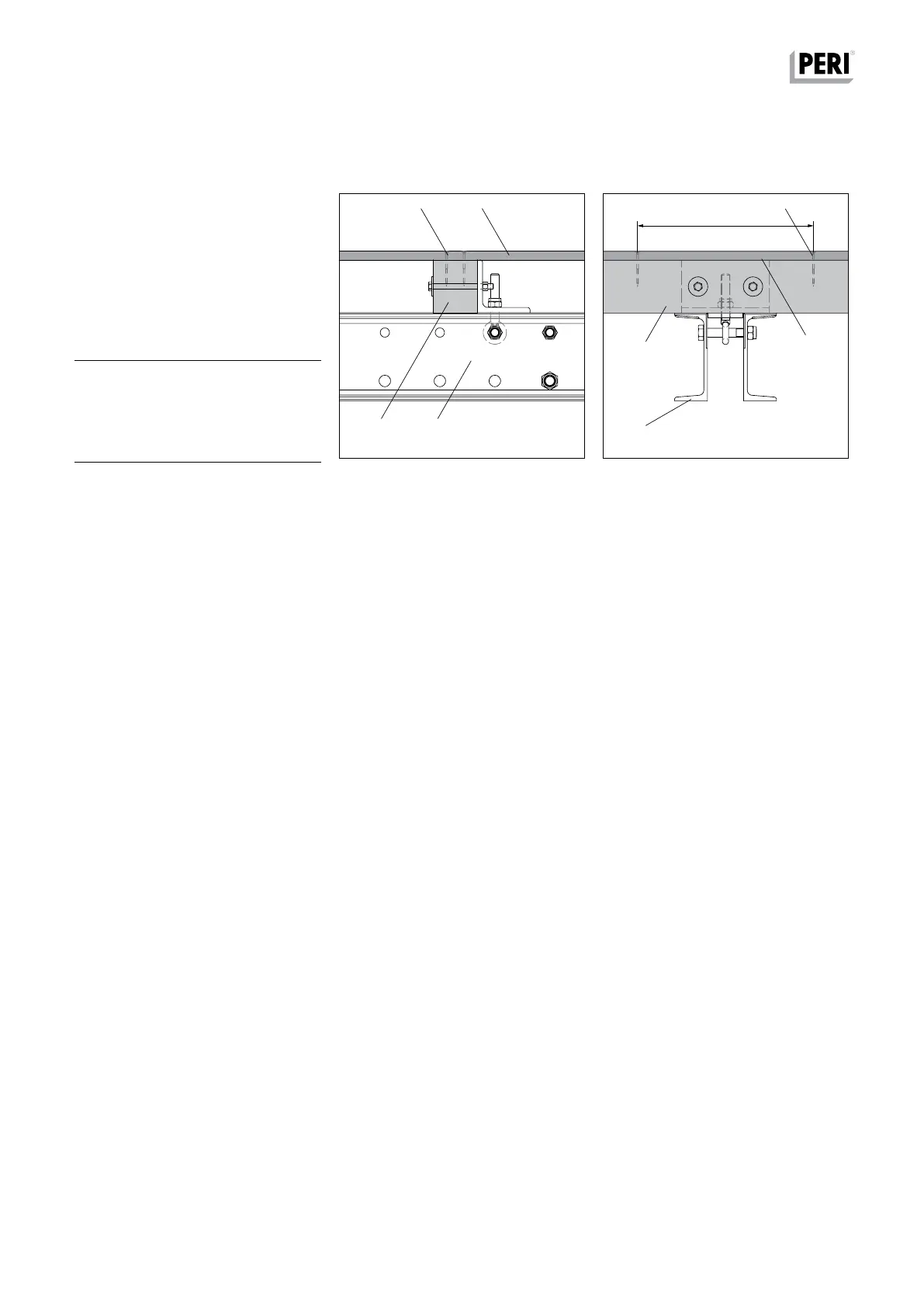

Fig. C3.05 Fig. C3.05a
Mounting the Multi-Layer
Plywood Sheeting
The dimensions for cutting the multi-
layer plywood sheeting, as well as
screw spacing e, are provided in the
site-specific assembly drawings.
Components
1 Climbing Rail RCS
14 Enclosure Beam (timber)
18 Enclosure (multi-layer plywood
sheeting)
99 TSS-Torx 6 x 60
Assembly
1. Cut the multi-layer plywood sheeting
according to the plans, position on
the Enclosure Beams and align.
2. Mark the position of the Enclosure
Beam, e.g. with a chalk line, and
mark bolt positions according to
site-specific assembly drawings.
3. Push the multi-layer plywood sheet-
ing to one side and pre-drill with
Ø7mm. Do not pre-drill the Enclo-
sure Beam.
4. Align the multi-layer plywood sheet-
ing and secure on the Enclosure
Beam using Torx screws (99).
(Fig. C3.05 + C3.05a)
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
