Explorer Mini Repairs - Base module

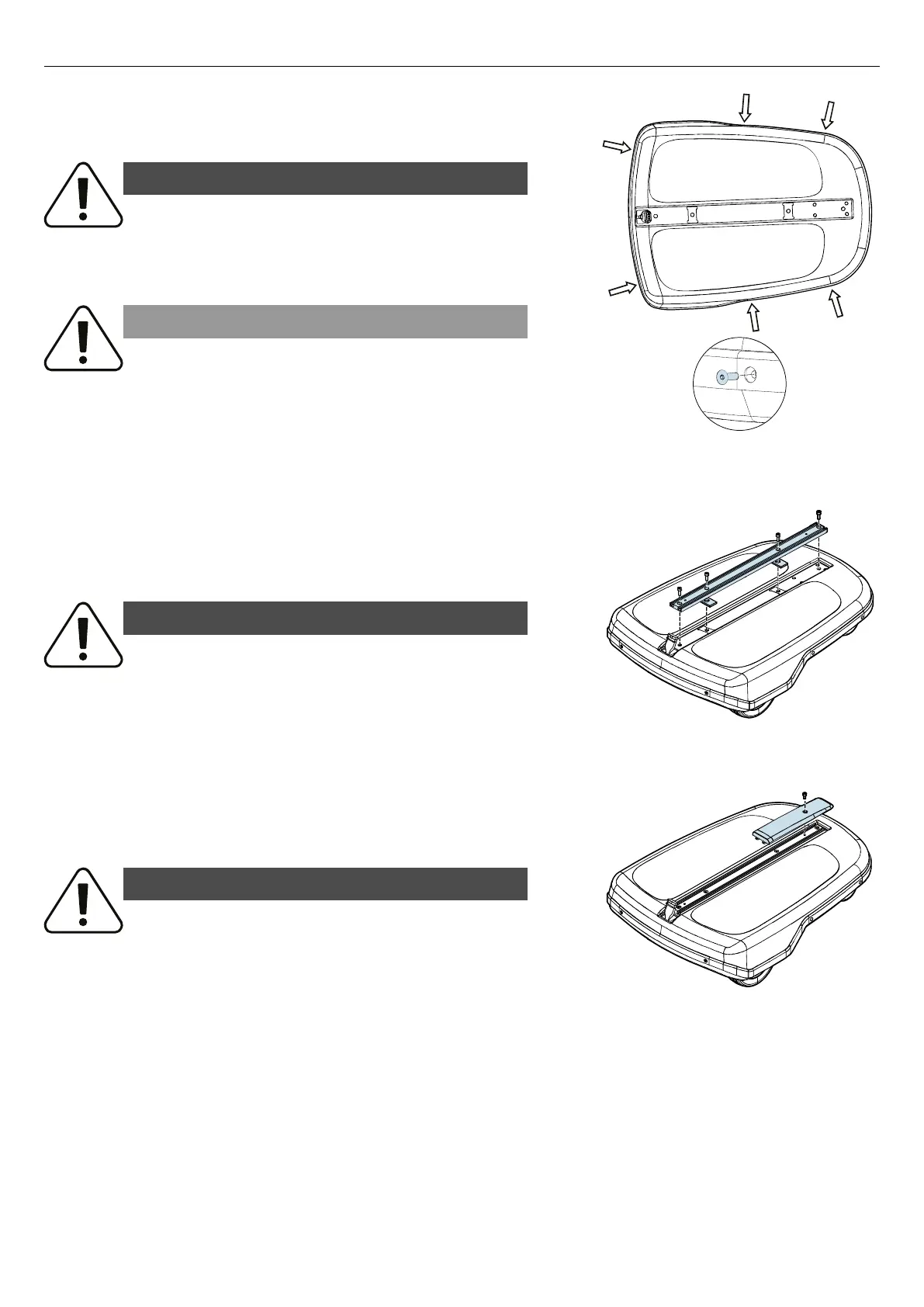

Figure 48. Attach the top cover on the base module
with the six screws.
3. Attach the top cover on the base module with the six screws.
Tightening torque: 0.9 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
CAUTION!
Risk of injury
Make sure that the screw heads don´t protrude when the screws have been
tightened.
Figure 49. Attach the UniTrack® and spacers with the
screws.
4. Attach the UniTrack® and the two spacers that are positioned at the
bottom of the UniTrack® with the screws. Tightening torque:
7.2 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
Figure 50. Attach the cover on the UniTrack® at the
rear of the base module.
5. Put the cover on the UniTrack® at the rear of the base module and
attach it with the screw. Tightening torque: 2.1 lb. ft.
WARNING!
Use recommended tightening torque
Use the recommended tightening torque to reduce the risk of damage to the
wheelchair and to prevent causing injury to the user.
