BODY PANELS

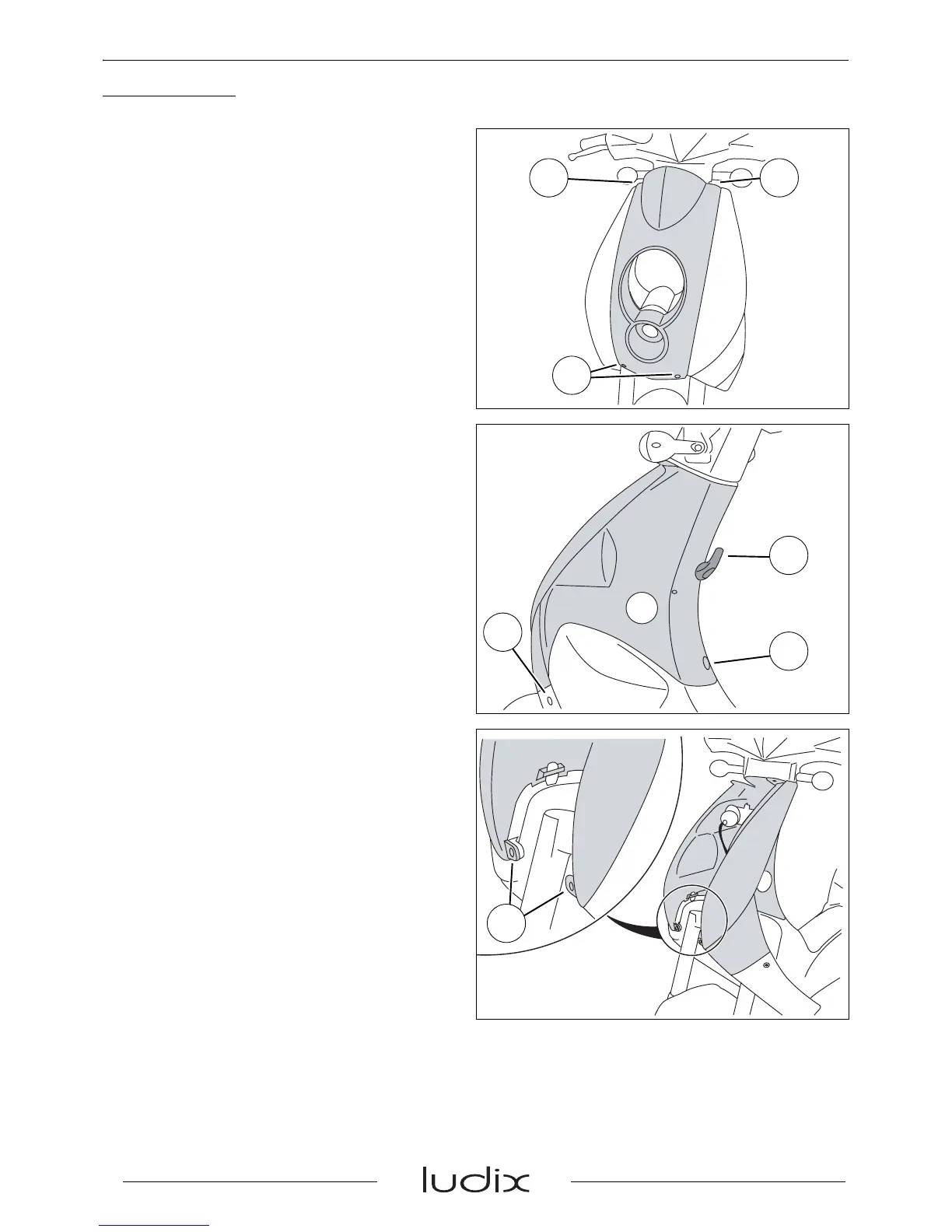

 Removal of the front shield panel
Procedure 1.
- Disconnect the speedometer driver control
cable.
- Unclip the control cable from the front
mudguard.
- Remove the front shield
panel (4 screws) (A).
- Disconnact the headlight.
- Disconnect the instrument cluster.
 Removal of the rear shield panel
Procedure 2.
- Remove the front shield panel. See:
Procedure 1 page 16.
- Remove the utility hanger (1).
- Remove the 3 screws (B) that secure the
rear shield panel.
- Unclip the rear shield panel from the
footboard (C).
- Remove the rear shield panel.
A A
A
B
B
1
C
