BODY PANELS
18
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

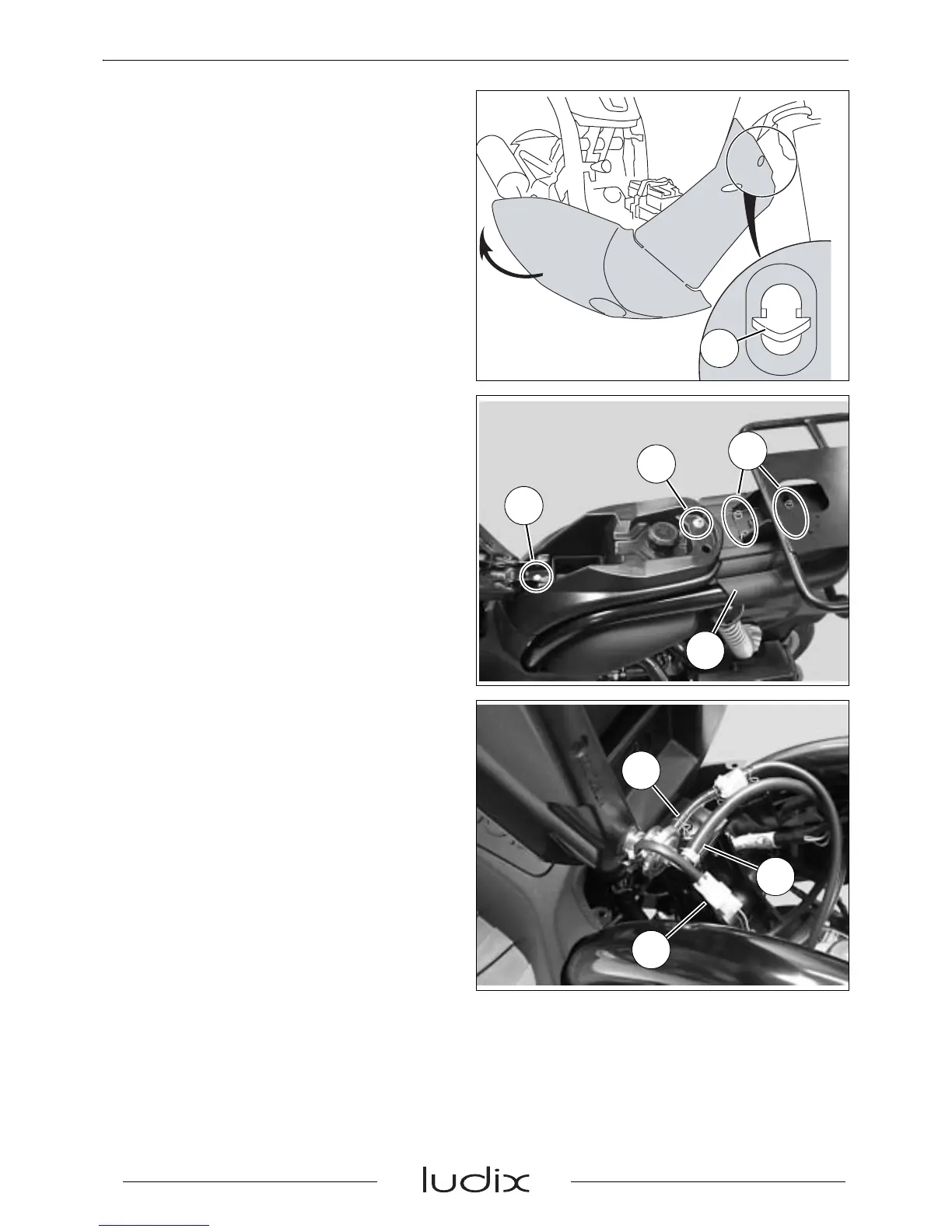

- Swivel the bottom panel to the right of the
vehicle in order to unlock the front chassis
fastener (G).
Removal of the fuel tank
Procedure 4.
- Remove the saddle (1 screw) (A).
Tightening torque: 22 Nm.
- Remove the luggage carrier (4 screws) (B).
Tightening torque: 25 Nm.
- Remove the plastic cover (1).
- Lift the fuel tank (1 nuts) (C).
- Disconnect the fuel gauge (D).
- Disconnect the vacuum hose (E).
- Disconnect the fuel supply hose (F).
G
1
A
B
C
D
F
E
