BODY PANELS
17
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

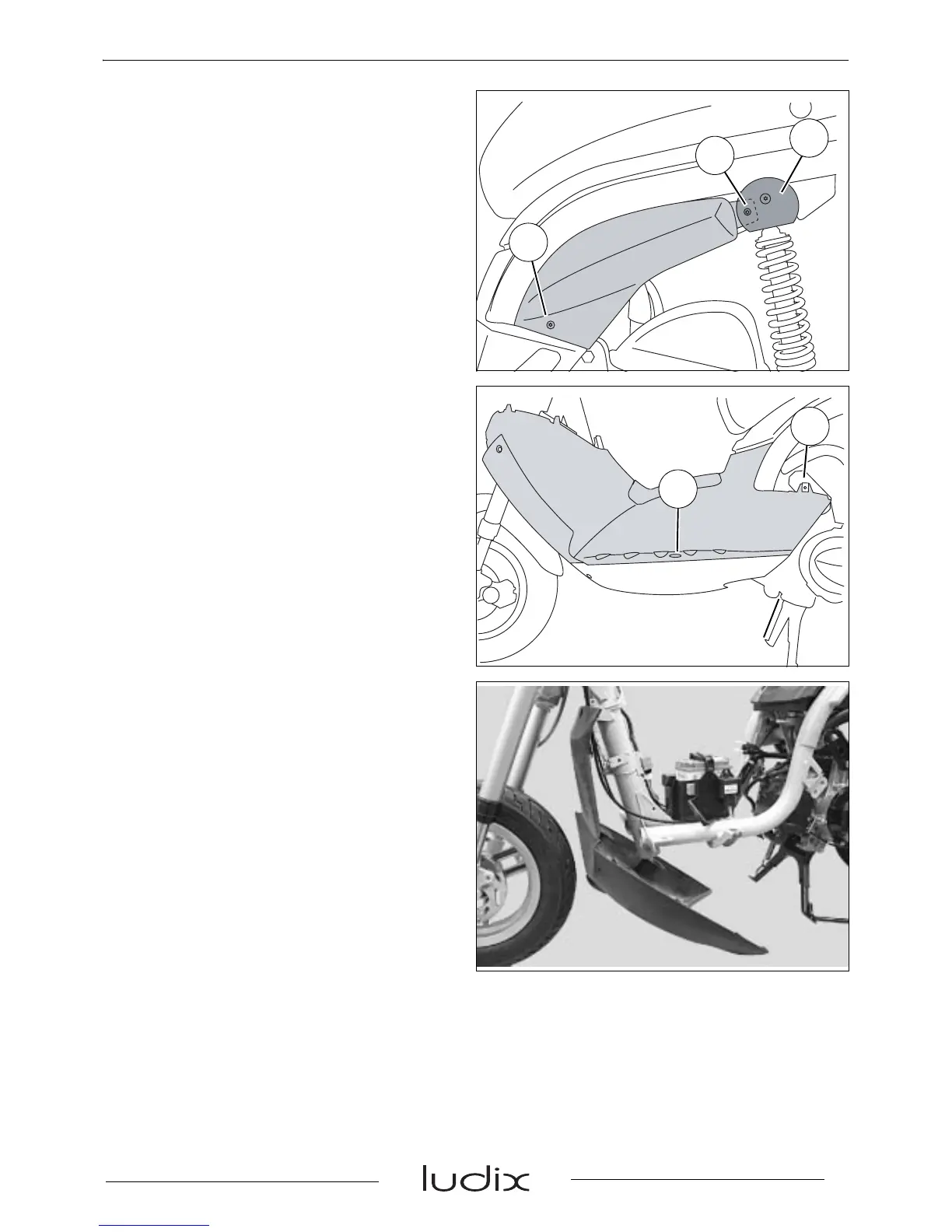

Removal of the footboard
Procedure 3.
- Remove the rear shield panel. See:
Procedure 2 page 16.
- Remove the shock absorber trim (2).
- Remove the side fairings (2 screws
each) (D).
- Remove the 2 clips (E) in order to avoid
scratching the frame.
- Remove the footboard (2 screws) (F).
Removal of the under body panel
- Remove the footboard. See: Procedure 3
page 17.
- Unclip the under body panel.
2
D
D
F
E
