MISCELLANEOUS OPERATIONS
35
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

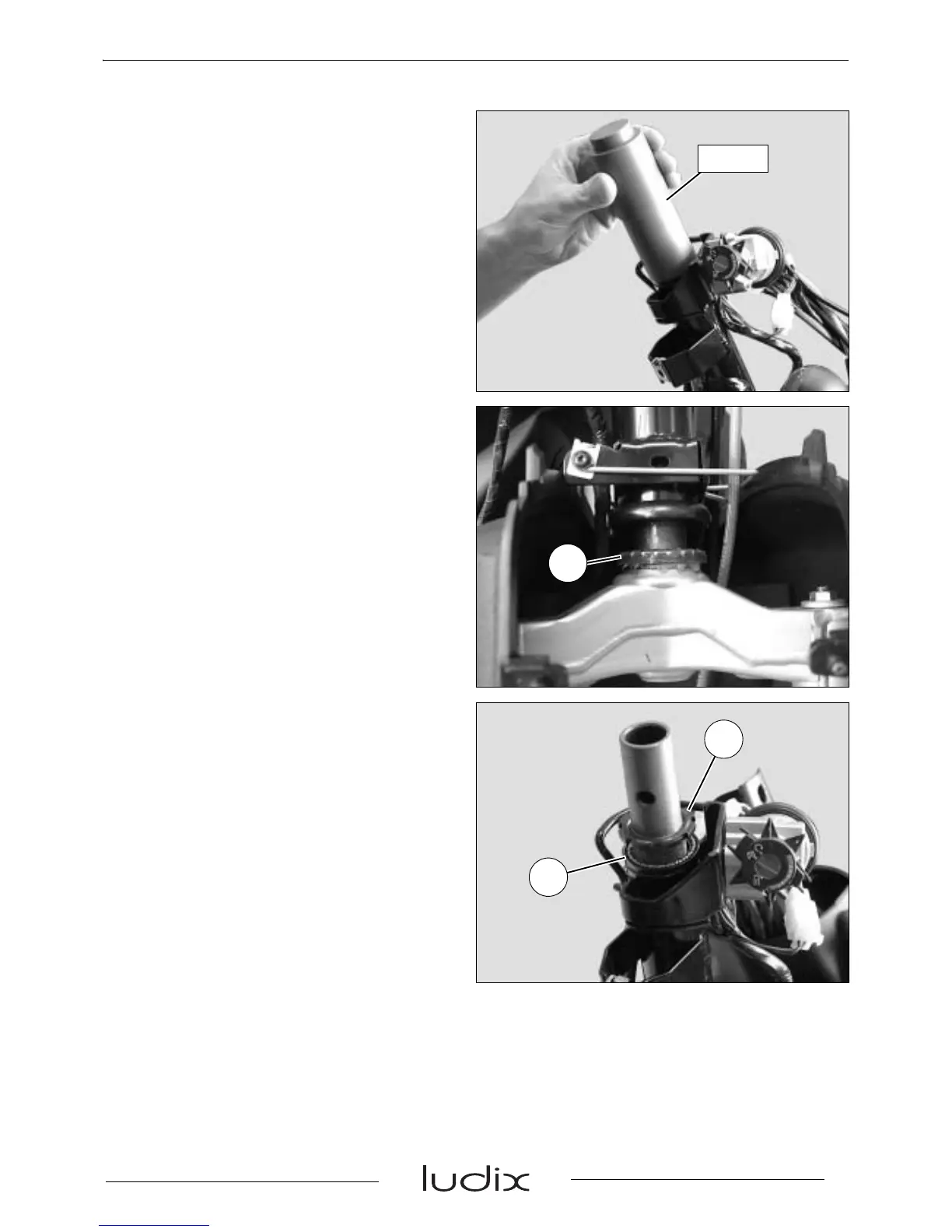

- Using push tool P/N 756607, fit a new upper
cup into the steering tube.
- Using push tool P/N 759788, fit a lower cup
into the steering tube.
- Grease the cup bearing races.
- Install new ball cage bearings (3).
- Fit the fork into the steering column.
- Install new ball cage bearings (4).
Steering system tightening method
- Install the adjustable cone and tighten it (5).
Tightening torque: 40 Nm.
- Loosen and then retighten the adjustable
cone.
Tightening torque: 23 Nm.
756607
3
4
5
