ELECTRICITY
38
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
 Checking the ignition system
- Remove the battery access door.
- Disconnect and remove the battery.
- Remove the battery bracket.

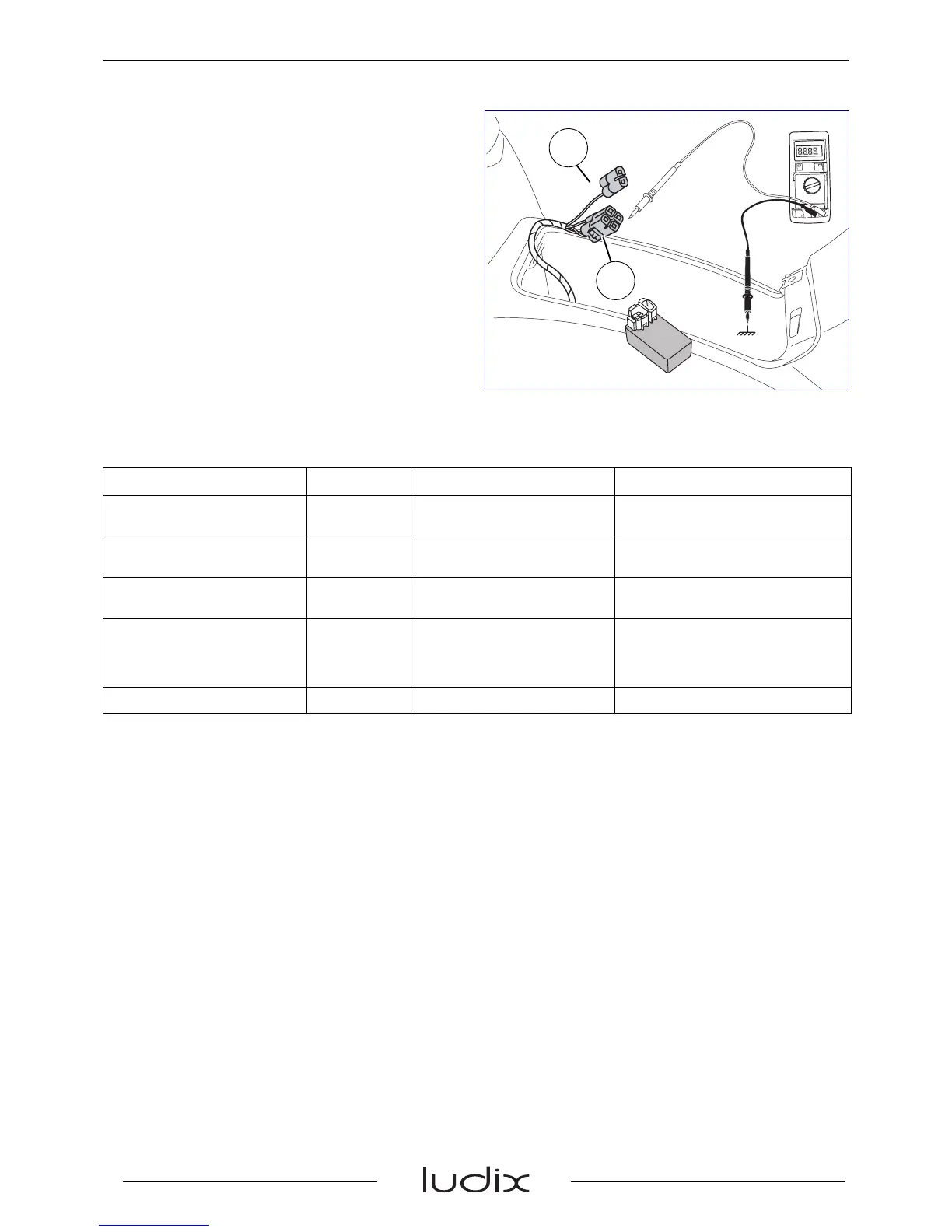

Disconnect the ignition unit and take the
measurements on the harness side.
- If the values are correct, replace the ignition
module.
- If the values are incorrect, check:
• The harness.
• The ignition switch.
• The ignition sensor.
• The high voltage coil.
Component Connector Wire colours Standard values
Ground A
Green
To the ground
R=0Ω
Ignition sensor A
Ye l l ow / b l ue
To the ground
R=115 Ω
±20%
Battery positive power B
Black
To the ground
Ignition on: U=12V
Ignition off: U=0V
HT coil:
Primary
Secondary
A Yellow/black and Green
High tension wire and Gren
R=0.2 Ω
±20%
R=3 KΩ
±20%
Spark plug socket
R=5 KΩ
±20%
Ω
B
A
