Checking the starter resistance
- Resistance: 12 Ω
±10%

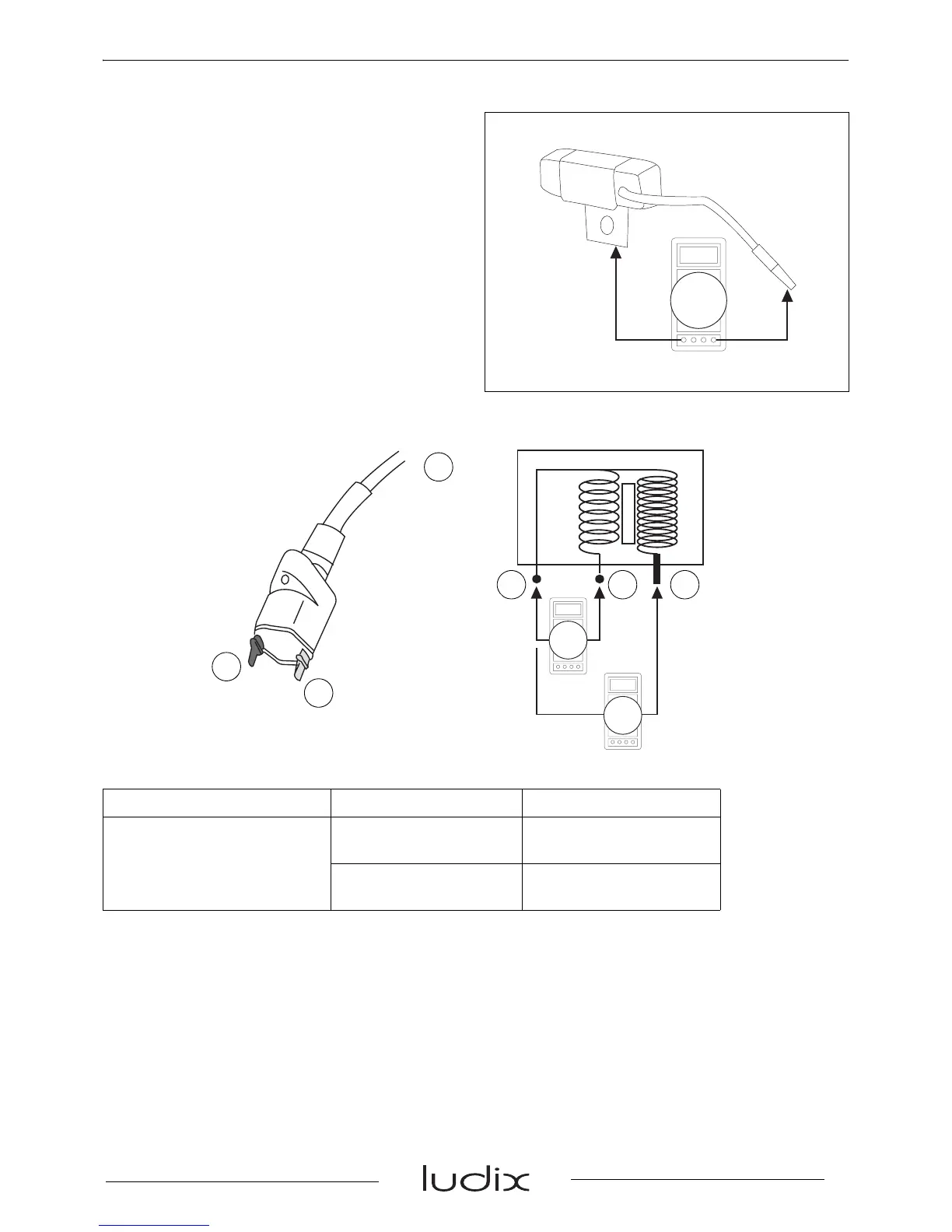

Checking the high tension coil
Condition Measurement Standard values
Disconnect the high voltage
coil.
Disconnect the suppressor.
Between terminals
A and B
R=0.2 Ω
±20%
Between terminals
B and C
R=3 kΩ
±20%
Ω
Ω
Ω
A
C
CB
A
B
