Adjustment
13 - 37

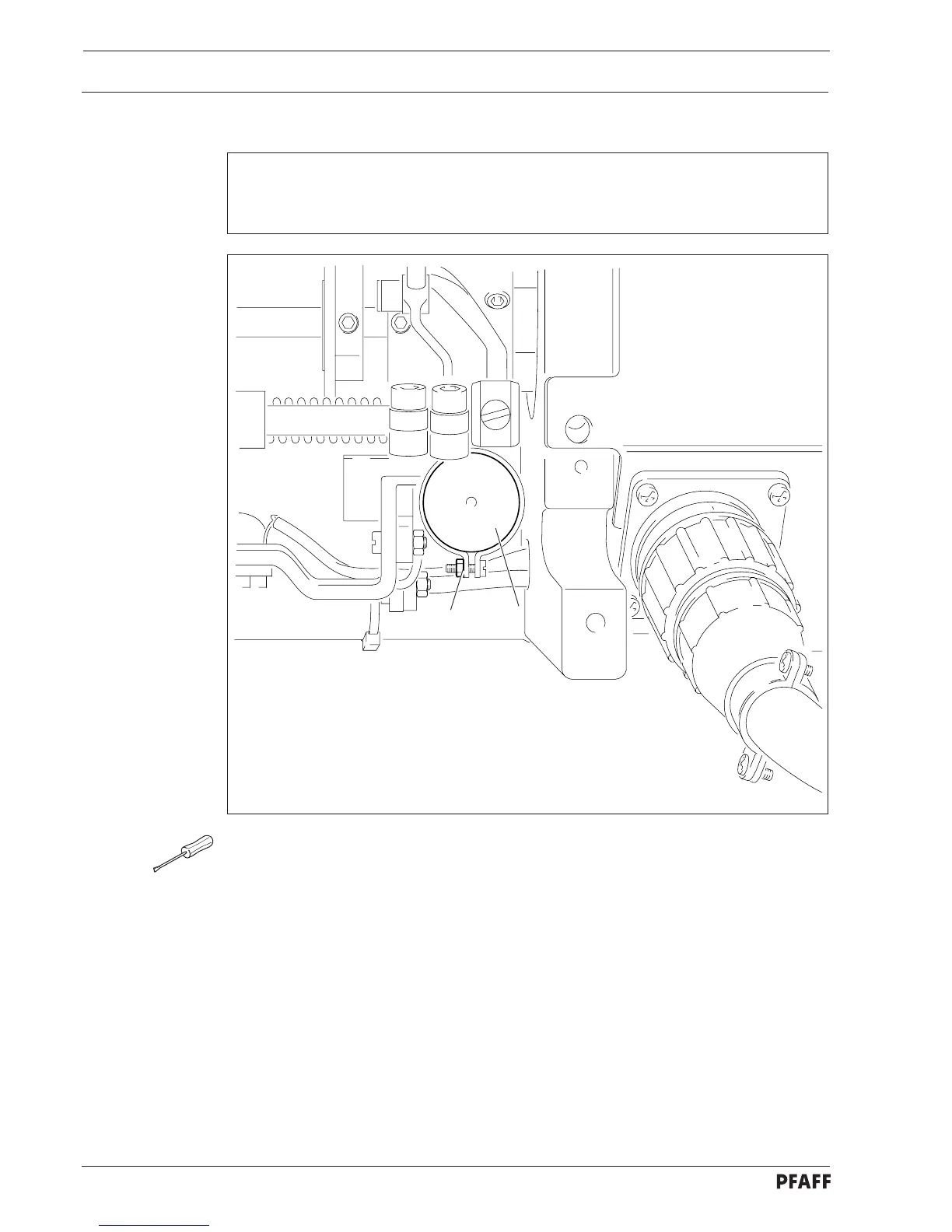

Fig. 13 - 33
2
1
●
Bring the needle bar to BDC and activate the tripping lever by hand.
●
Push solenoid housing
1
( screw
2
) up as far as possible and then move it in accordance
with the
requirement
.
●
Lift the tripping lever out of the control cam by hand.
13.
07.04
Engaging solenoid
Requirement
With the trimming device swichted on, the field core must still be
1 mm
before its lower
stop.
113
115
