Pfaff 1491E1 - Adjusting the Counter; Adjusting Speeds

Adjustment
13 - 52
13.09.02 Adjusting the counter
● Turn the machine on.
● Select INPUT mode.
● Select the input menu function (number key 0).
● Select the COUNTER function.
3
Adjusting the parameters:
● Select the parameter to be altered with the corresponding number key.
● Enter the new value via the number keys (observe permissible values).
● Confirm the alteration with the Enter key.
13.09.03 Adjusting speeds
● Turn the machine on.
● Select INPUT mode.
● Select the input menu function (number key 0).
● Select the SPEED function.
1 2
3
4 5 6 7 9 0
Enter
8
Esc
Clear

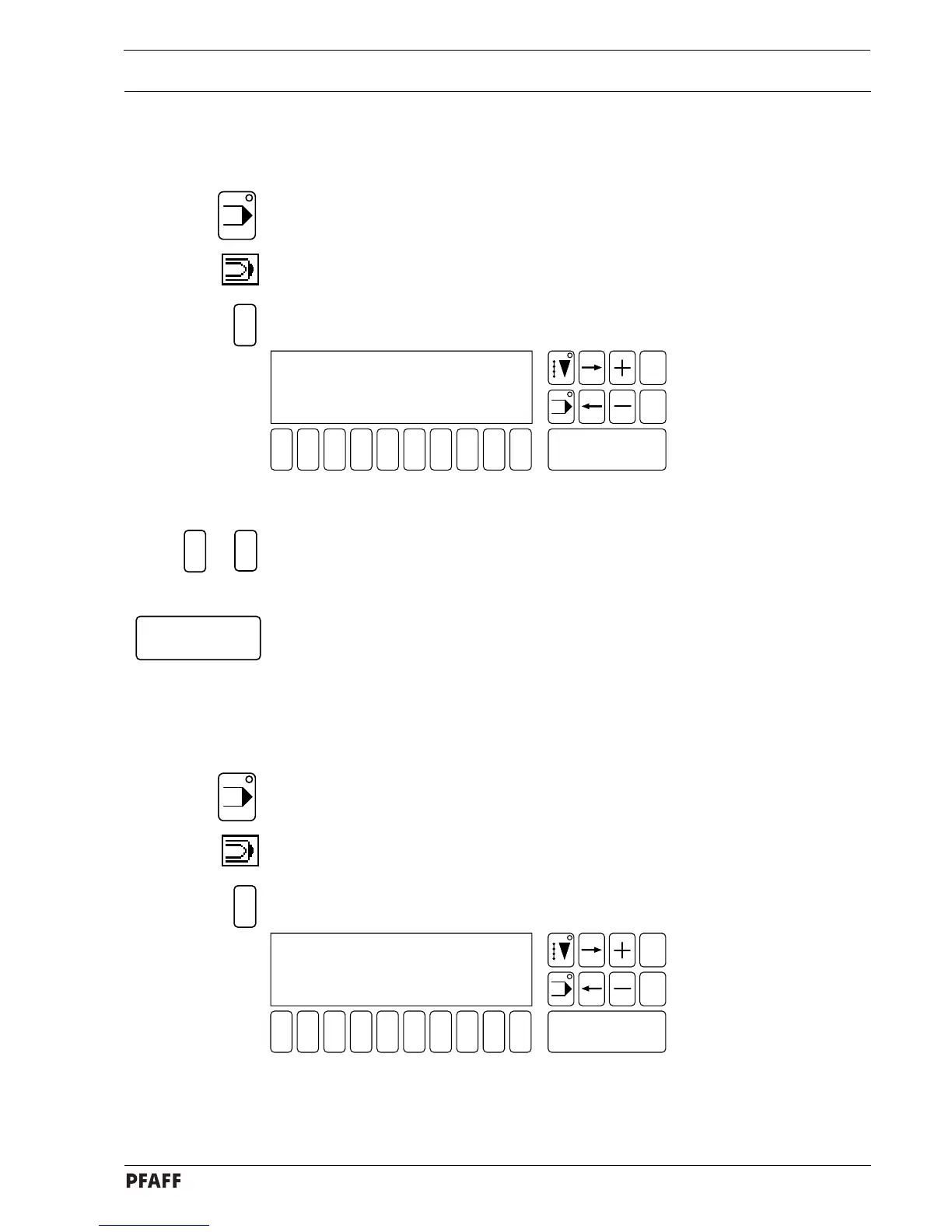

Fig. 13 - 47
1 - START DELAY AFTER ROLLER PRESSER LOWER 0.15S
2 - ROLLER PRESSER LIFT DELAY 0.02S
3 - SOFT START STITCHES 0
3
1
to
Enter
4
● The speeds are adjustable as described in 13.09.02 Adjusting the counter.
1 2
3
4 5 6 7 9 0
Enter
8
Esc
Clear
Fig. 13 - 48
1 - MAXIMUM SPEED 4000 1/MIN
2 - START BARTACK SPEED 700 1/MIN
3 - END BARTACK SPEED 700 1/MIN
4 - SOFT START SPEED 1500 1/MIN
