12 - 2
Care and maintenance
12.02 Lubricating the hook
Turn the machine off!
● Apply 1-2 drops of oil into hole 1 of the
hook gib every day.
● Before commissioning and after longer
standstill periods, also apply a few drops
of oil into the hook race.
( see arrow in Fig. 12-02 )

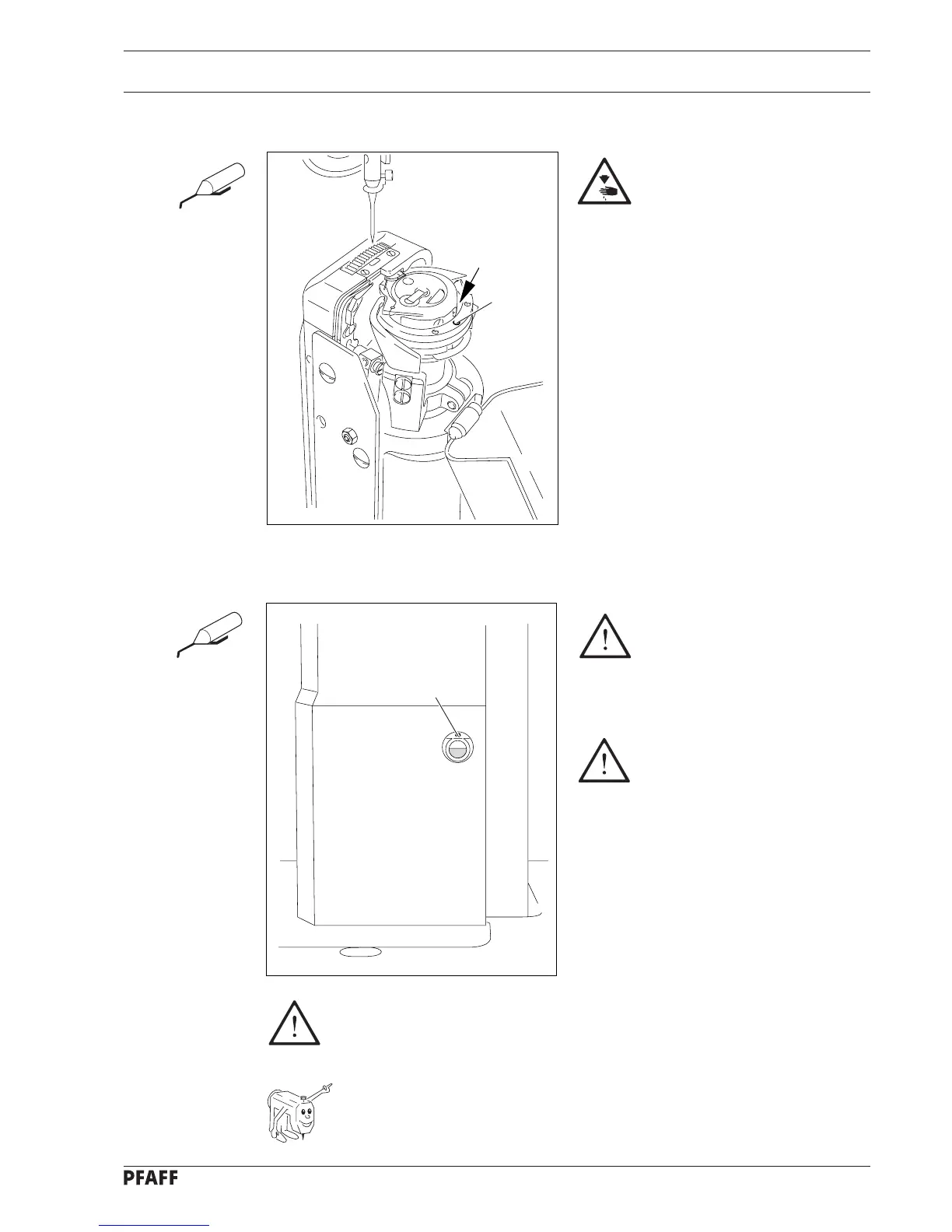

Fig. 12 - 02
1
12.03 Filling the oil reservoir
Check the oil level before every
use.
● Fill oil through hole 1 into the reservoir as
required.
There must always be oil in the
oil reservoir.
Fig. 12 - 03
1
Use only oil with a mean viscosity of 22.0 mm
2
/s at 40°C and a density
of 0.865 g/cm
3
at 15°C.
We recommend PFAFF sewing machine oil Part no. 280-1-120 144.
