Pfaff 1491E1 - Scissor Drive Lever

Adjustment
13 - 38
13.07.05 Scissor drive lever
Requirement
The top edge of screw 1 must protrude approx. 9 mm from the recess on the housing.
2
1
9 mm

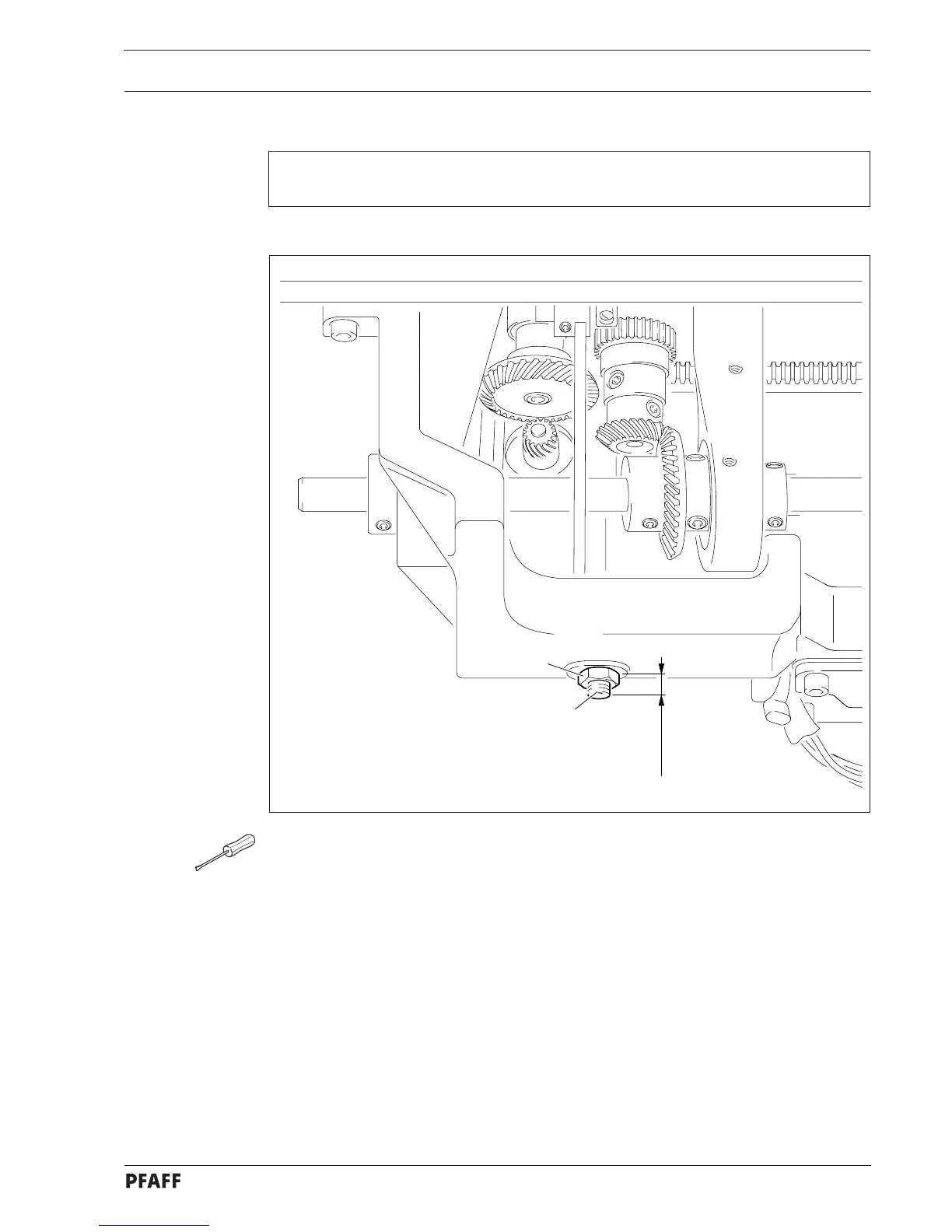

Fig. 13 - 34
● Turn screw 1 ( nut 2 ) in accordance with the requirement.
