Pfaff 1491E1 - Clearance between Roller Presser and Feed Wheel

Adjustment
13 - 15

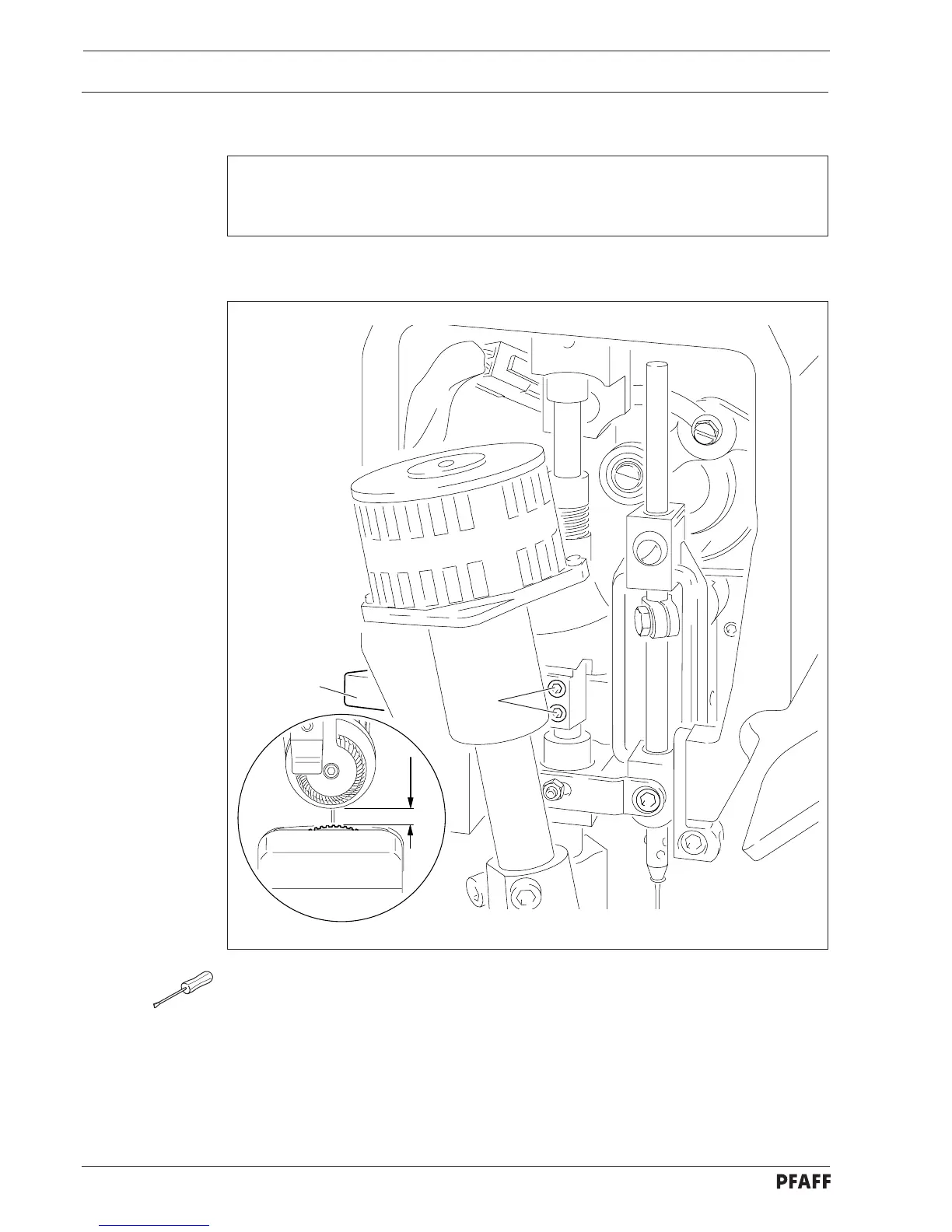

Fig. 13 - 11
2
1
7 mm
13.04.12 Clearance between roller presser and feed wheel
Requirement
With lever 1 raised the clearance between the roller presser and the feed wheel must be
7 mm.
● Raise lever 1.
● Move the presser foot bar ( screws 2 ) in accordance with the requirement. Take care to
ensure that the roller presser is parallel to the feed wheel.
