Adjustment
13 - 17
1
2
3

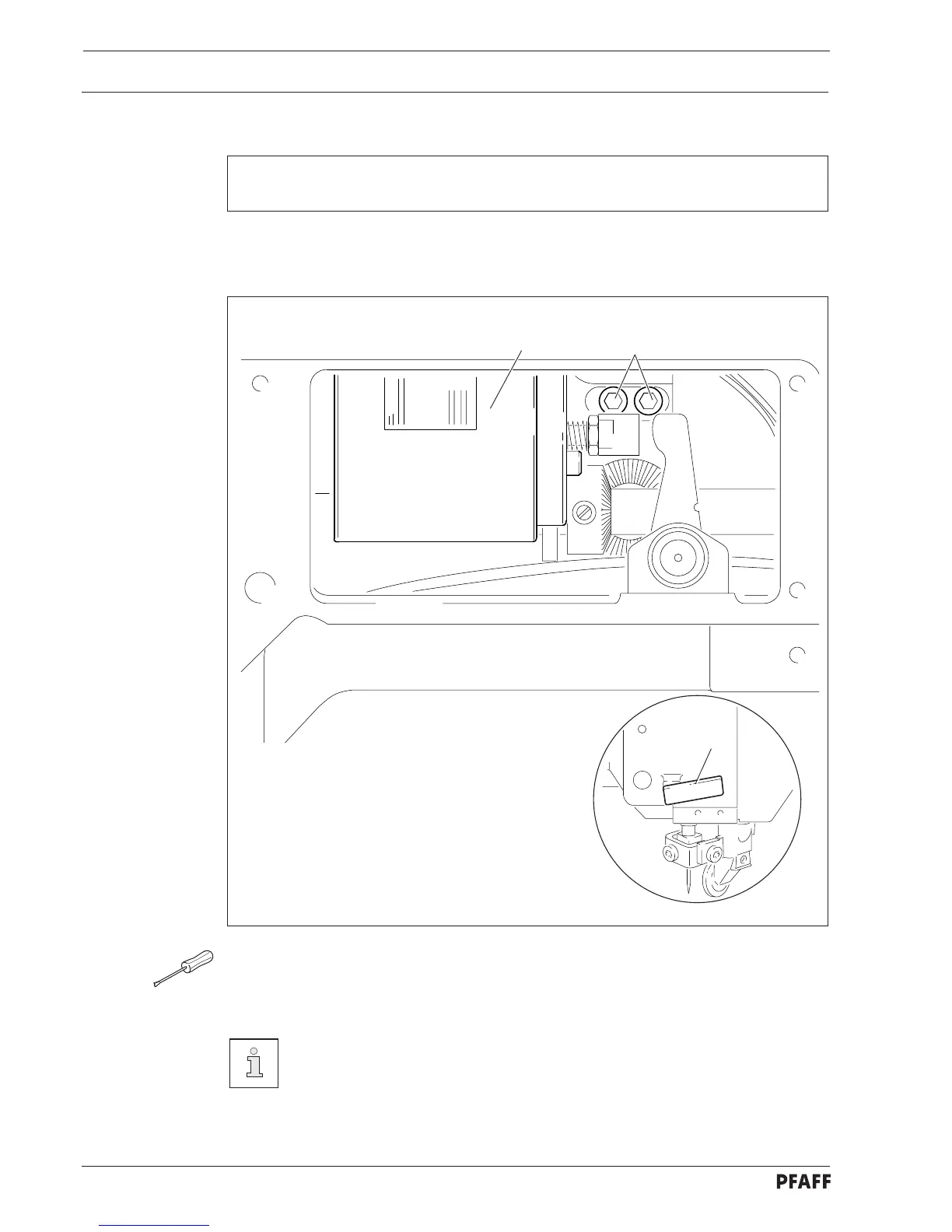

Fig. 13 - 13
13.04.14 Automatic presser-foot lifter
Requirement
When solenoid 1 is activated, lever 3 for the roller presser must drop automatically.
● Move solenoid 1 ( screws 2 ) in accordance with the requirement.
● Turn the machine on and check the requirement.
● Turn the machine off.
Depending on the thickness of the material, the clearance between the roller
presser and the feed wheel can be increased to a maximum of 10 mm by
moving the solenoid to the right.
