Controls
7 - 3
7.05 Lever for lifting the roller presser
● The roller presser is raised by turning
lever 1.

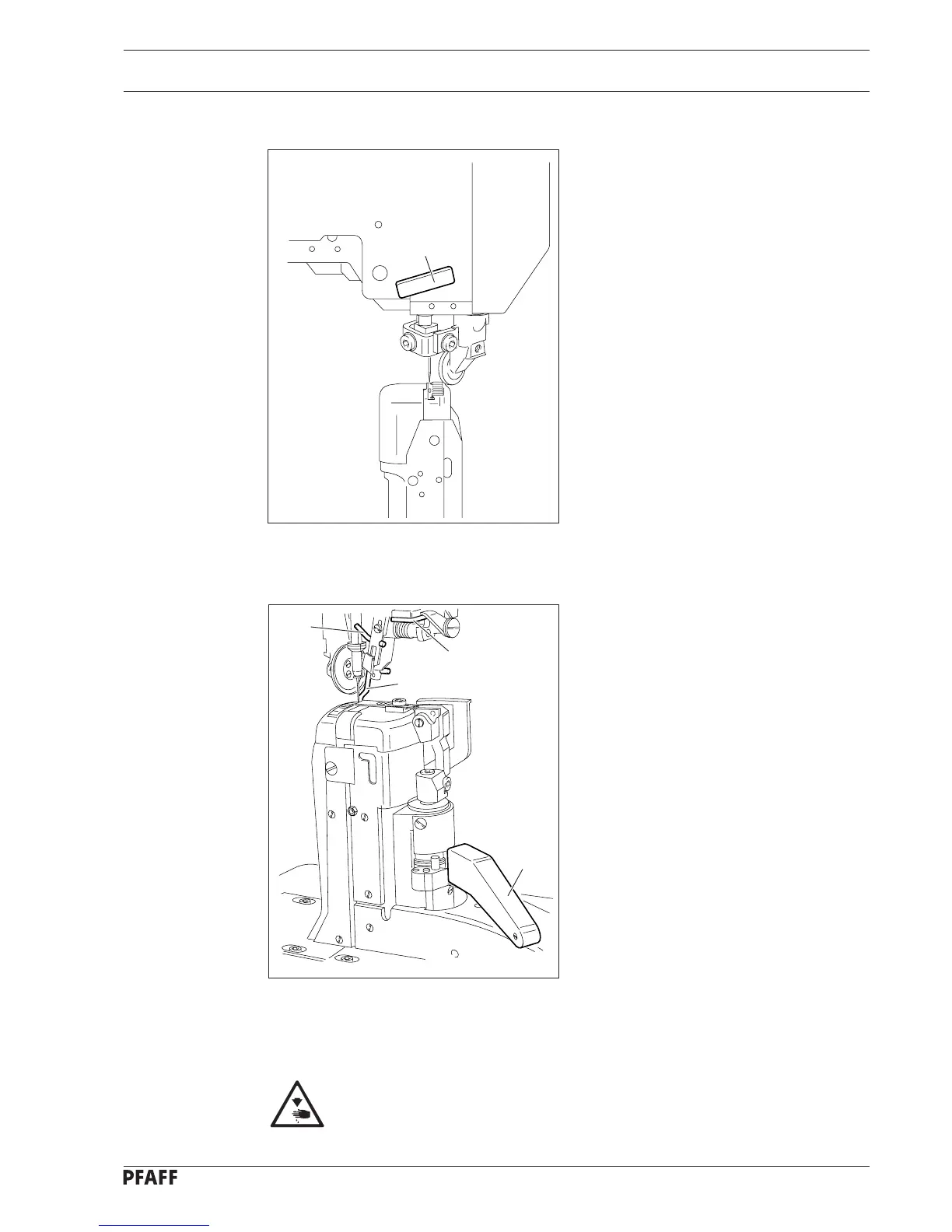

Fig. 7 - 06
4
2
3
1
1
7.06 Edge trimmer -725/04
Switching on the edge trimmer
● The knife is brought into start position
and the edge trimmer is switched on by
pushing lever 1 to the rear until it
engages.
Switching off the edge trimmer
● The edge trimmer is switched off and
the knife is swung to the rear by
pressing lever 1.
Switching on the edge guide
● The edge guide is brought to starting
position by swinging in the edge guide 2
and pressing lever 3.
Switching off the edge guide
● The edge guide is put out of operation by raising it until it engages.
● The edge guide swings to the rear when lever 4 is raised.
Do not reach into the area of the working knife. Danger of injury!
