Adjustment
13 - 11
4
8
8
4

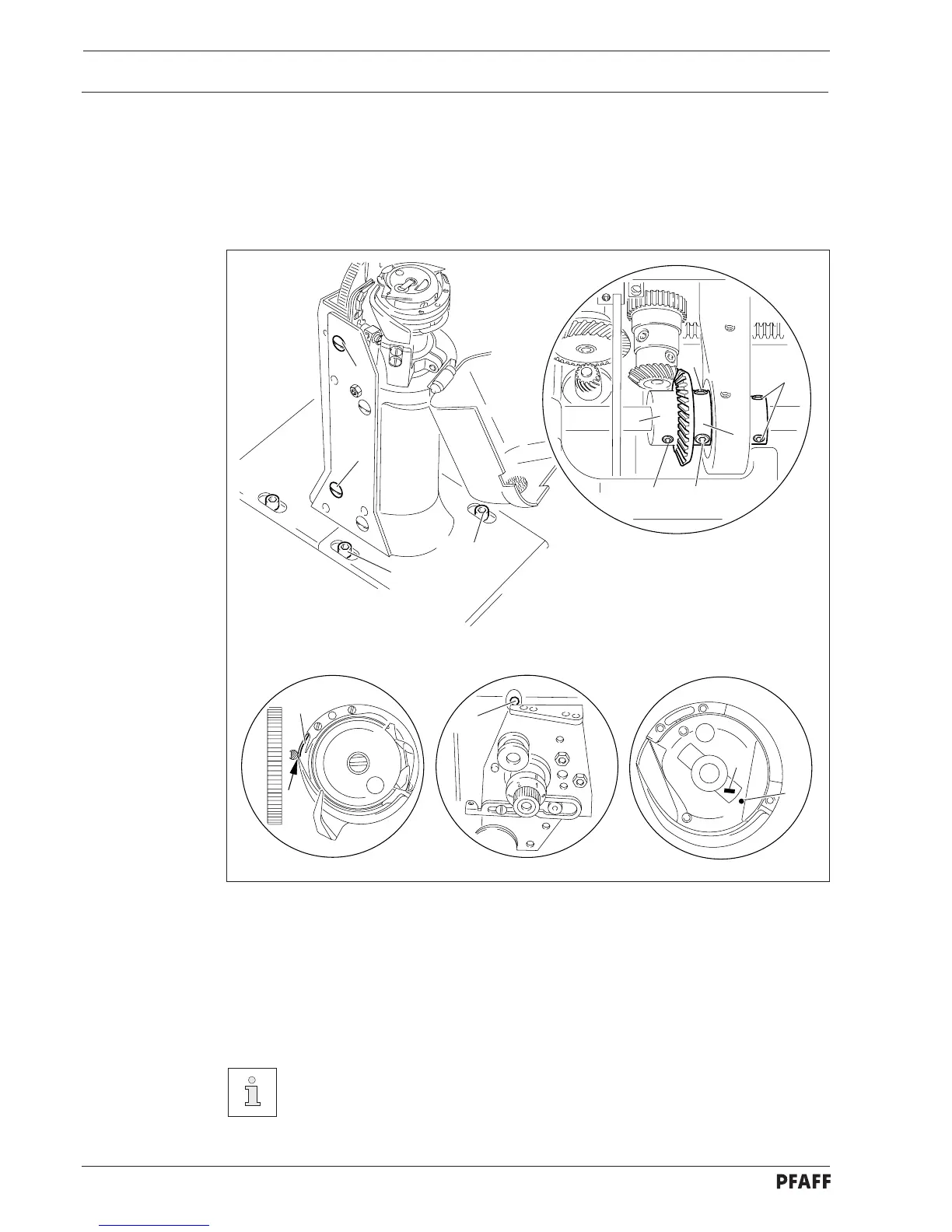

Fig. 13 - 07
3
2
7
6
2
1
9
11
10
5
● Move the hook post in accordance with requirement 1 and tighten screws 4.
● Pull the adjustment pin out of hole 5.
● Observing the bevel gear play, tighten screws 2.
● Bring retaining collar 6 to rest against bevel gear 7 and tighten screws 1 and 3.
● Tighten screws 8 on both sides of the post.
● Align needle guard 9 in accordance with requirement 3.
When changing the hook, ensure that markings 10 and 11 are both on the same
side.
