15 - 1
91-232 022-95
Version 07.09..04

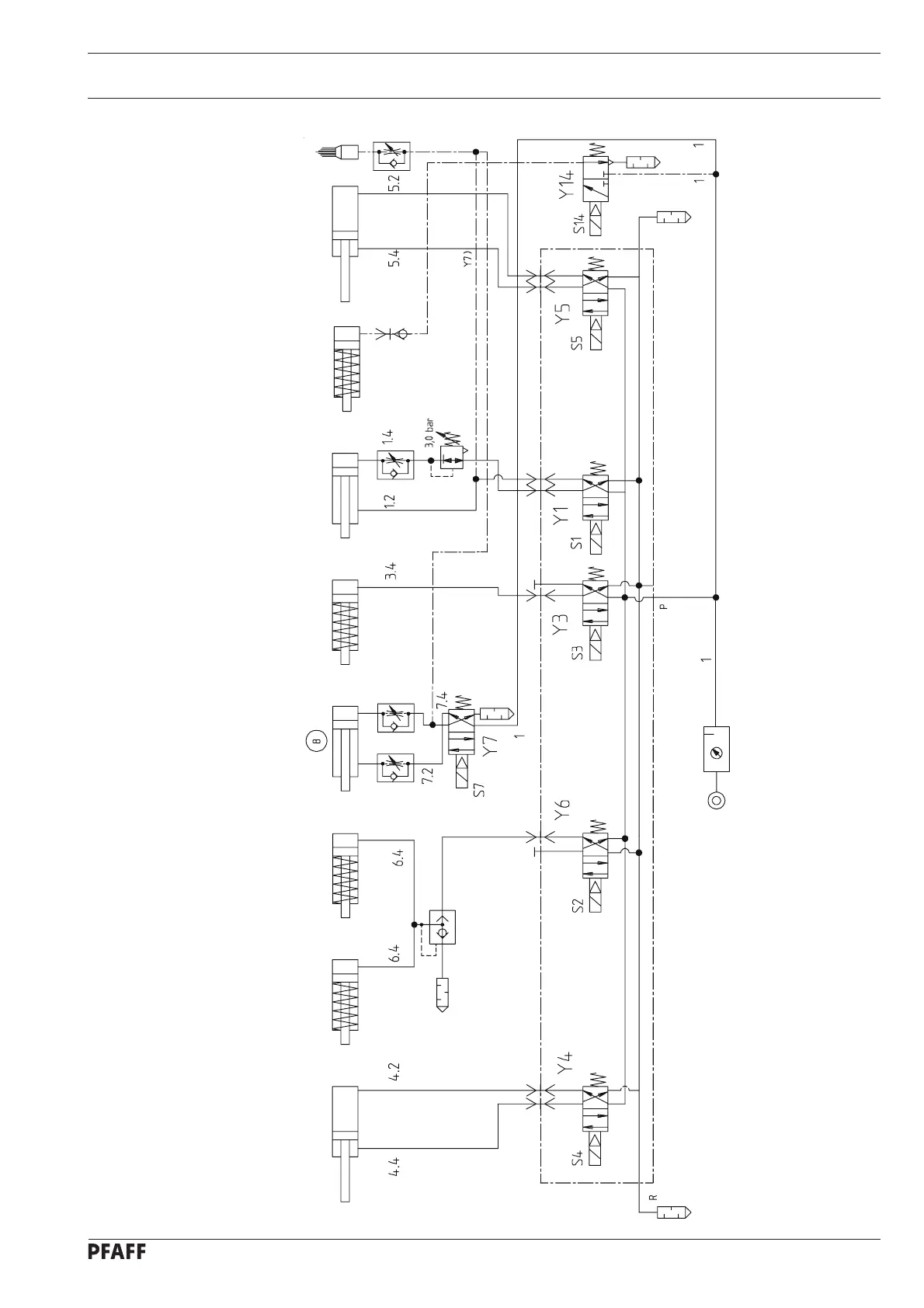

Pneumatics-switch diagram
15 Schaltpläne
Air jet without thread
wiper valve
The control elements and valves are in
the machine's basic position.
Main switch -ON, compressed air -ON
2
3
4
5
6
7
8
9
1
Cylinder for
thread puller
Cylinder for
thread tension
Cylinder for
thread wiper
Cylinder for
thread clamp
Cylinder for
raising clamp
Cylinder for self-
shank button
Cylinder for end
knotting
Cylinder for
thread trimmer
Air jet
Thread wiper
or air jet
