Care and maintenance
12 - 2

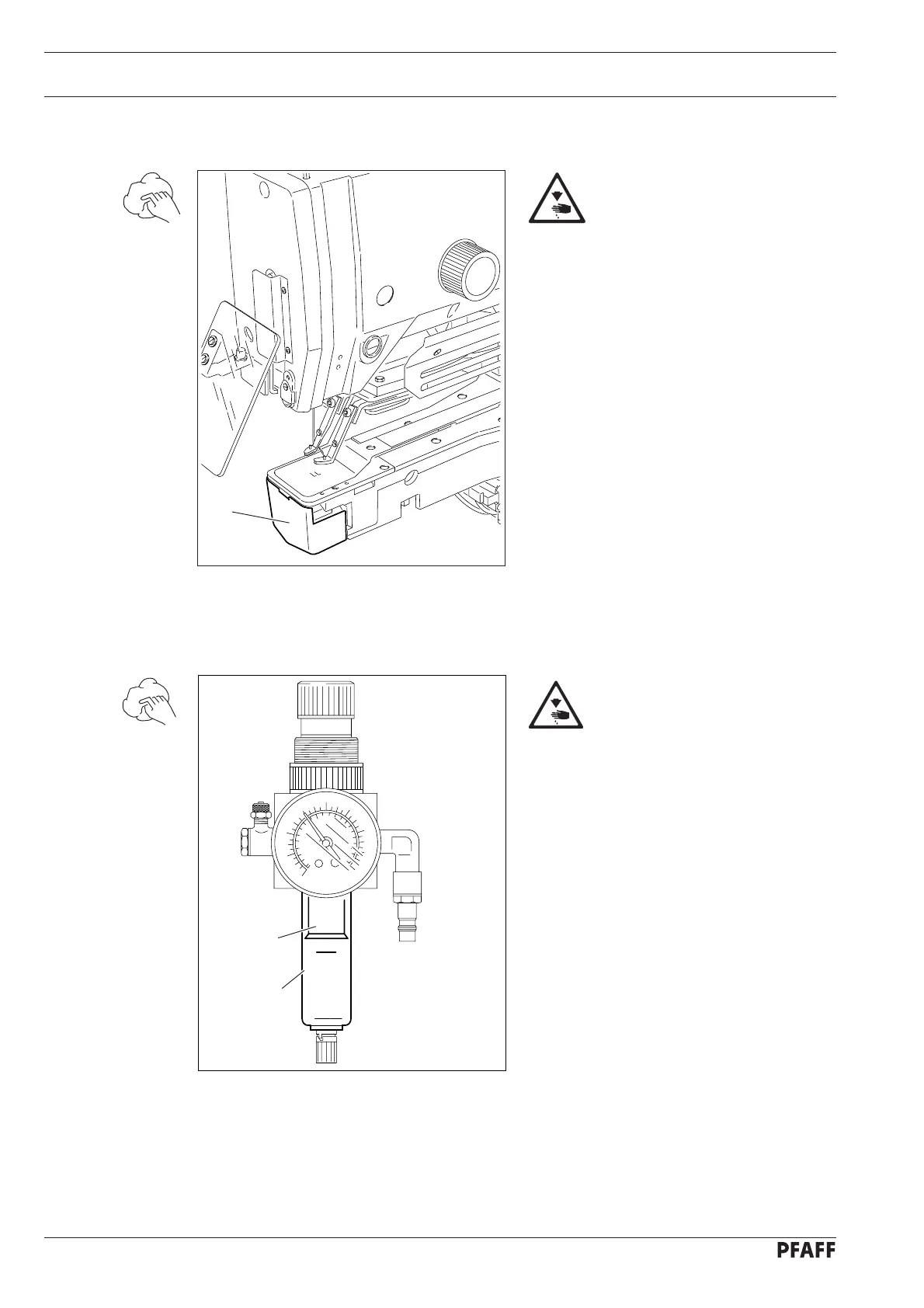

12.02 Cleaning the hook compartment
Switch off the machine!
Danger of injury if the machine
is started accidentally!
● Open the hook compartment cover 1.
● Clean the hook and the hook
compartment daily, more often if in
continuous operation.
12.03 Cleaning the air filter/lubricator
Switch off the machine!
Remove the compressed air
tube from the air filter.
Empty the water tank 1:
● The water tank 1 empties automatically
after the removal of the compressed air
tube of the air filter.
Clean filter 2:
● Unscrew water tank 1.
● Remove filter 2.
● Clean filter 2 with compressed air or with
isopropyl alcohol (part no. 95-665 735-91).
● Replace filter 2 and screw water tank 1
back into place.
Fig. 12 - 02
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230
1
2
1
0
4
-0
0
8
