Adjustment
13 - 24
108-008
13.24 Aligning the button holder and button support (only on sub-class -5/..)
Requirement
After parameter "610" has been set to value "4", the needle, at a distance of 5 mm from the
edge of the needle hole, should be centred to the needle hole of the button holder and
button support.
● Switch on the machine and set parameter "610" at "4" (button gauge: centre).
● Adjust button holder 1 (screws 2) and button support 3 (screw 4) in accordance with the
requirement.
● Connect the machine to the pneumatic power supply and check the setting again.
● If necessary, correct the position of button holder 1 (screws 2) and button support 3
(screw 4).
● Switch off the machine and disconnect it from the pneumatic power supply.

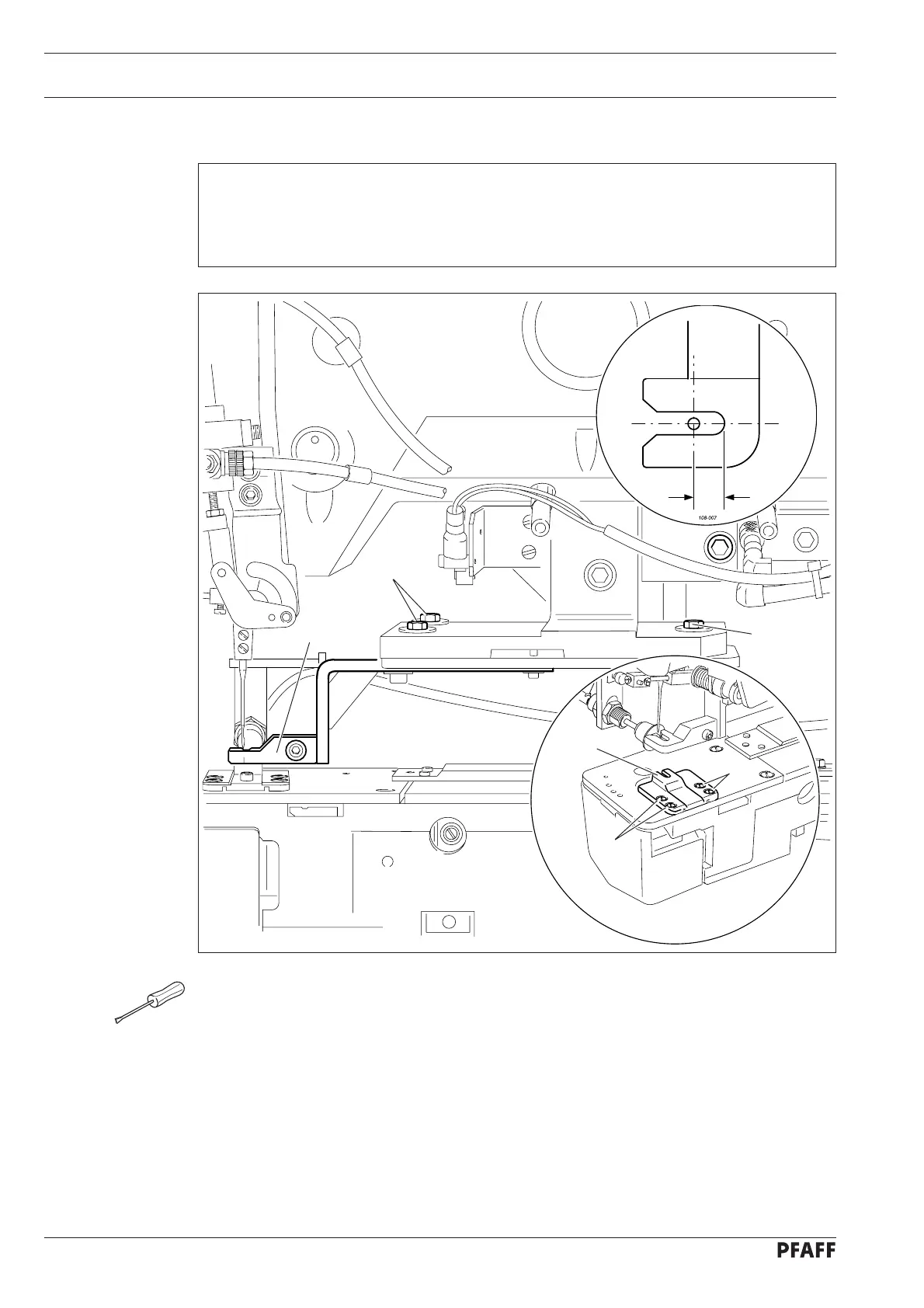

Fig. 13 - 22
1
2
2
5 mm
108-002
3
4
4
