13.34 Adjusting the thread clamp
Requirement
When thread clamp 1 is closed, the thread should be clamped reliably without being cut.
● Insert thread in thread clamp 1.
● Carry out a functional test for the thread clamp with parameter "603" (output 3).
● First of all, close throttle 2 completely and then adjust it in accordance with requirement.
Following the adjustment, parameters "504", "508" and "510" must be checked,
and adapted if necessary.

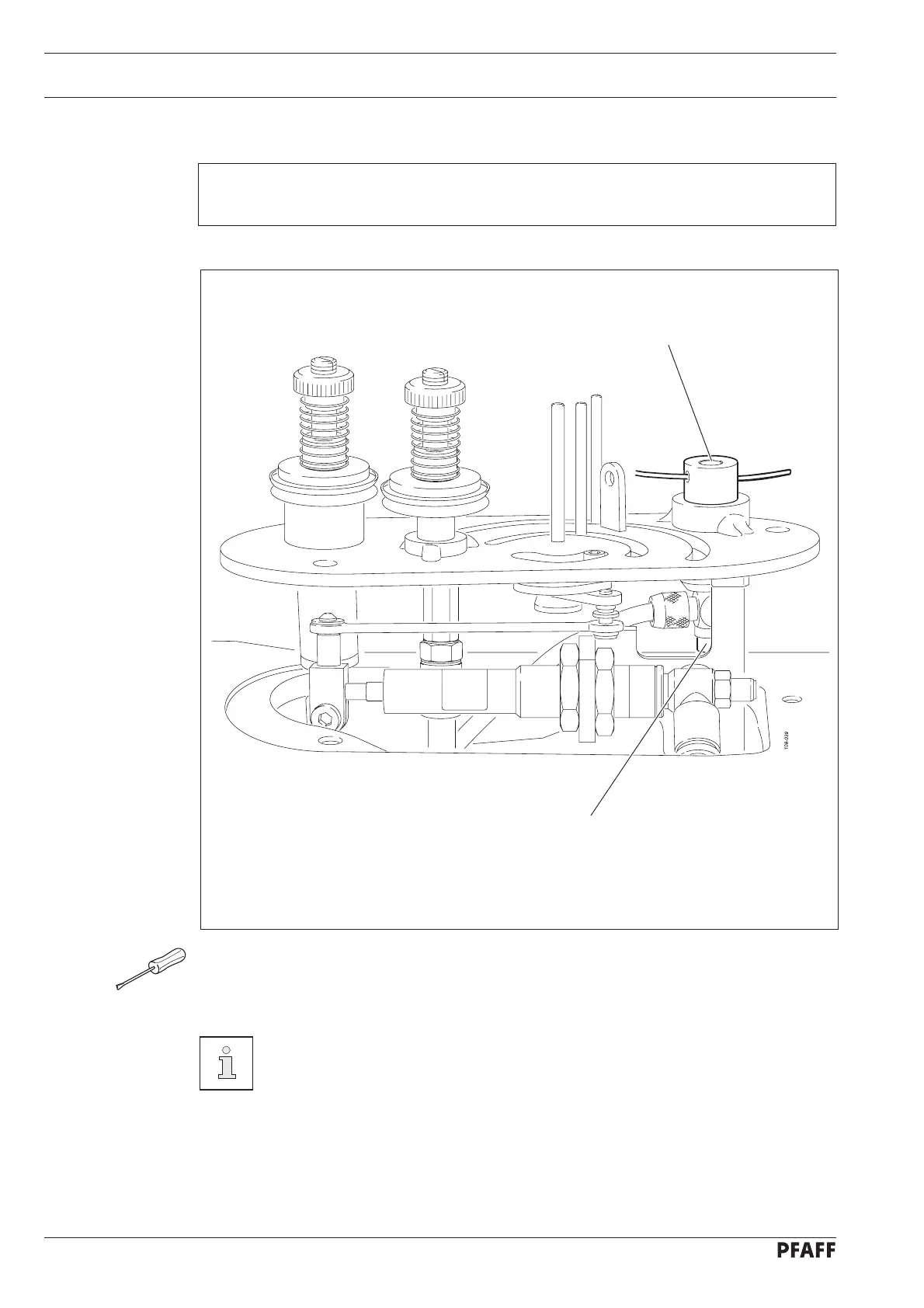

Fig. 13 - 32
