Pfaff 421E1 - Engaging Solenoid

Adjustment
13.05.03 Engaging solenoid
Requirement
With the roller lever 4 engaged and the engaging solenoid activated, there must be a
clearance of approx. 1 mm between latch 1 and roller lever 4.
13 - 25
● Disengage latch 1 and push the engaging solenoid up as far as possible.
● Move the solenoid housing 2 (screw 3) in accordance with the requirement.

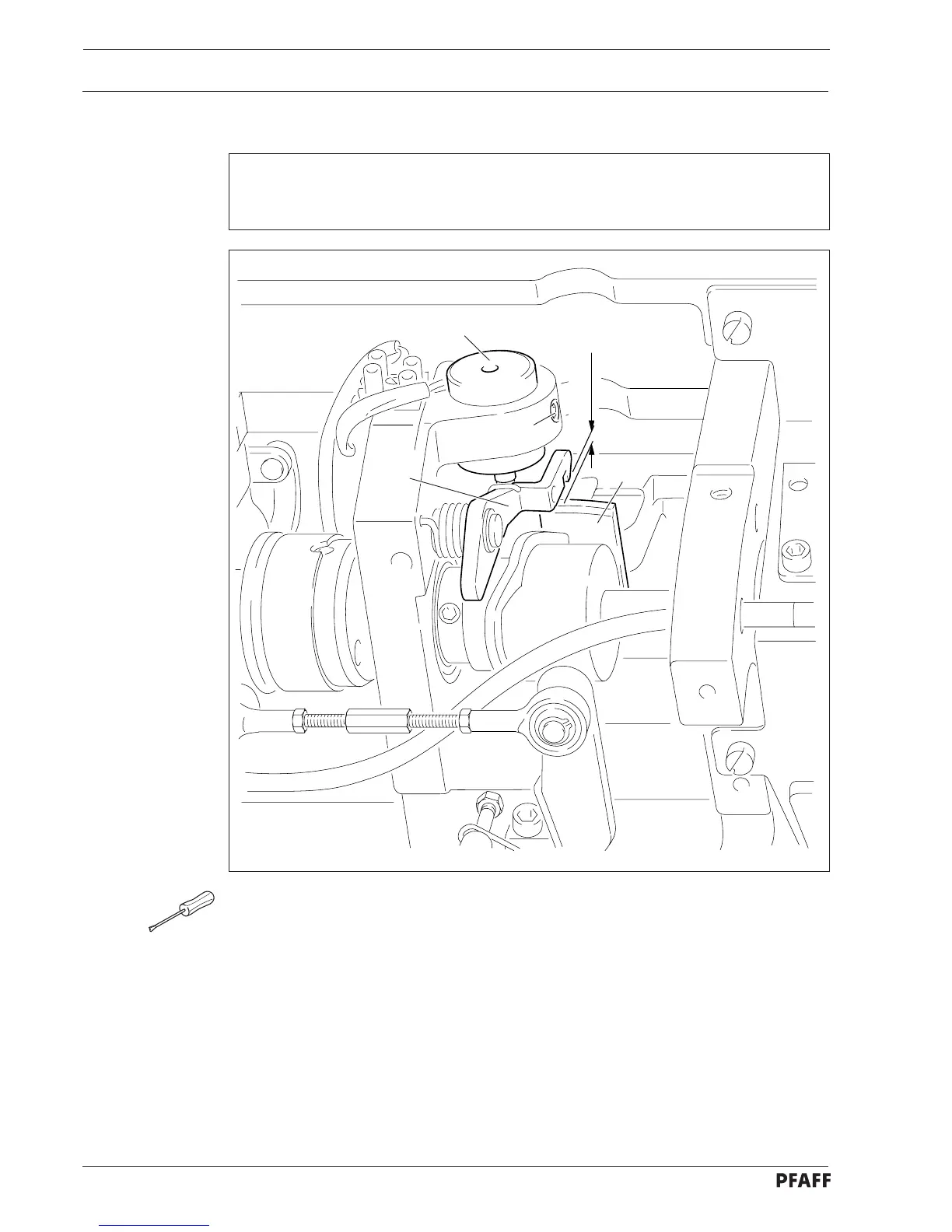

Fig. 13 - 21
1
2
3
4
1 mm
