Pfaff 421E1 - Fitting the Tilt Lock; Adjusting the V-Belt Tension

Mounting and commissioning the machine
8 - 2

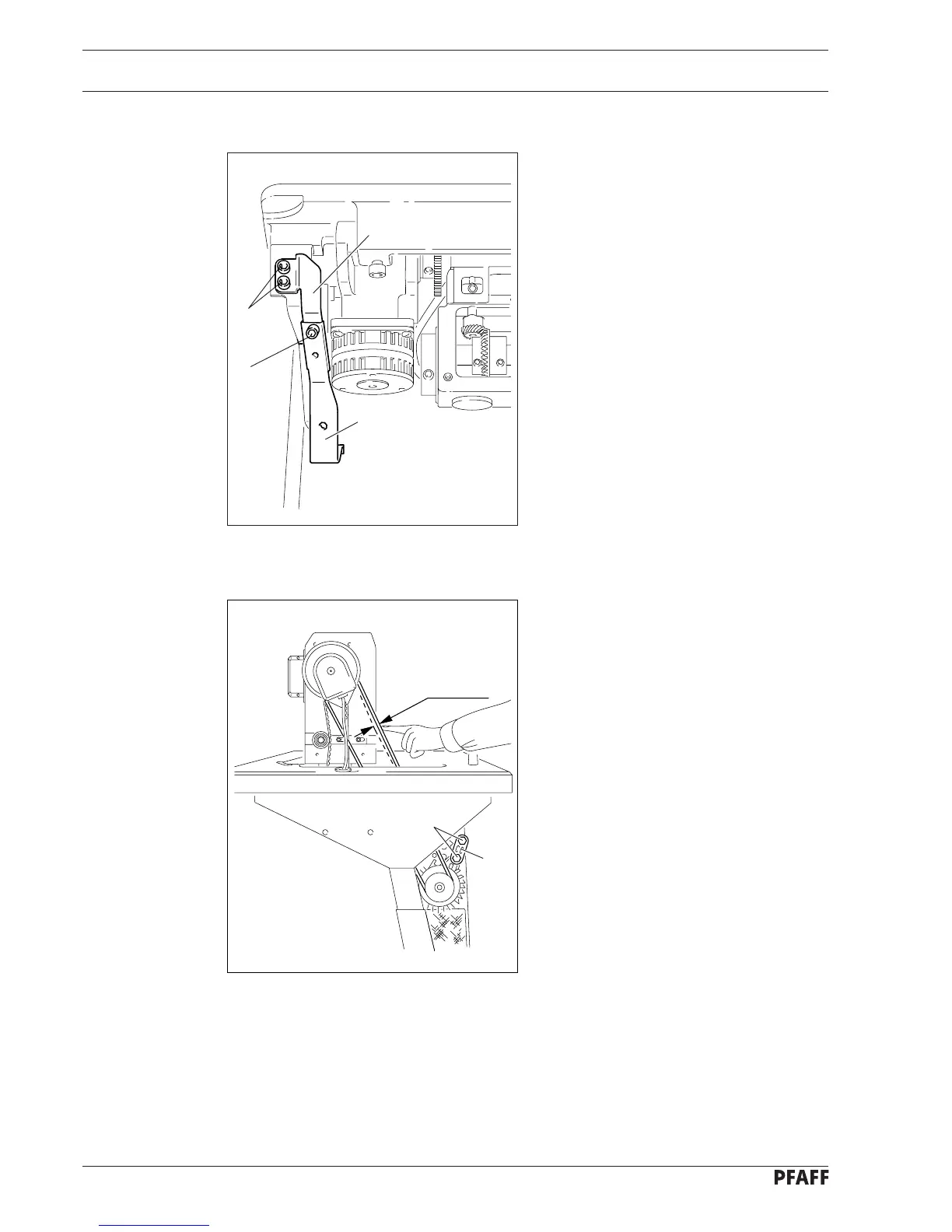

Fig. 8 - 03
2
1
2 cm
Fig. 8 - 02
3
4
2
1
8.01.03 Adjusting the V-belt tension
● Loosen nuts 1.
● Tighten the V-belt with belt take-up
hanger 2.
● Tighten nuts 1.
8.01.02 Fitting the tilt lock
● Screw on tilt lock parts 1 and 2, provided
in the accessories, using screws 3 and 4.
