Adjustment
13.04.18 Bobbin winder
Requirements
1. With the bobbin winder on, the bobbin winder spindle must engage reliably. With the
bobbin winder off, the friction wheel 5 must not engage the drive wheel 1.
2. The bobbin winder must turn off automatically when the thread level is approx. 1 mm
from the edge of the bobbin.
● Move drive wheel 1 (screws 2) in accordance with requirement 1.
● Move pin 3 (screw 4) in accordance with requirement 2.

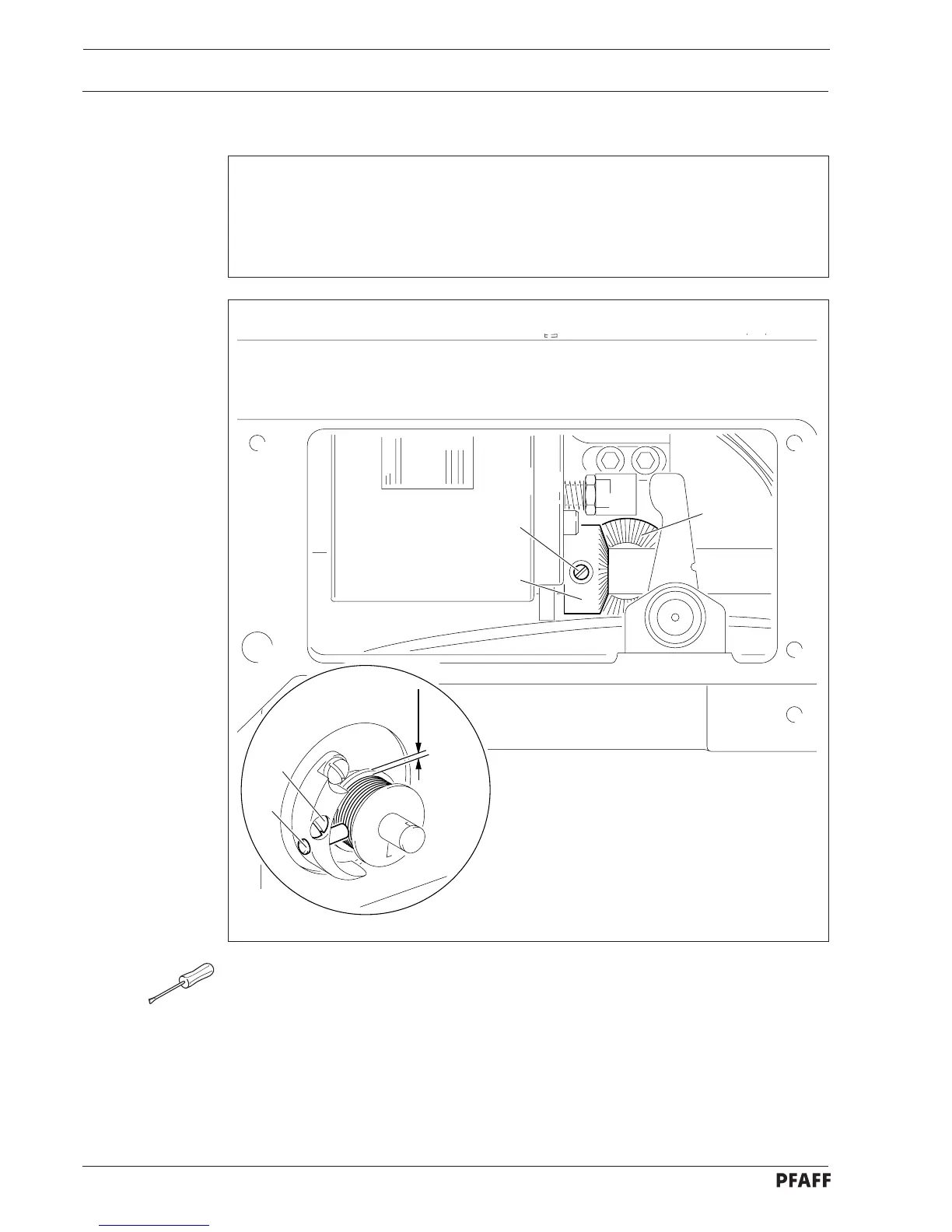

Fig. 13 - 17
2
1
5
1 mm
4
3
