Pfaff 421E1 - Symbols in the Text and Graphic Fields

Programming
11 - 2
11.02 Symbols in the text and graphic fields
Corresponding to the input status, a stylized seam section with the functions of the seam
section end is shown in the middle of the display.

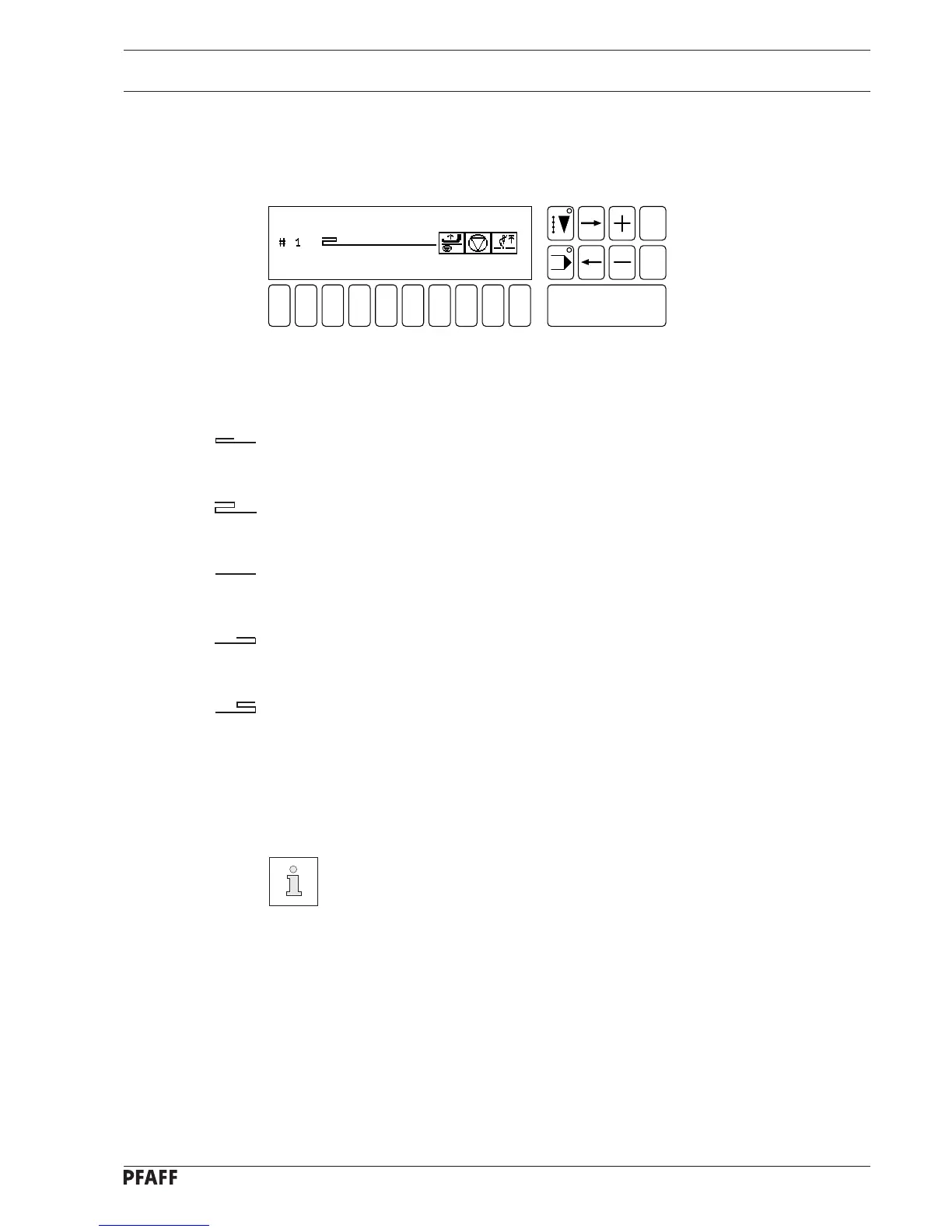

Fig. 11 - 02
#
Current seam section
The number of the current seam section is shown behind the symbol (e.g. 1).
Single start-bartack
Double start-bartack
Seam
Single end-bartack
Double end-bartack
Placed stitch
The symbols in the text line show the functions which are carried out at the
end of the seam section (see chapter 11.14 Seam section end). If the
symbols are in front of the stylized seam, this seam section is sewn in reverse.
Fig. 11 - 02
1 2
3
4 5 6 7 9 0
Enter
8
Esc
Clear
↓
↓
