Adjustment
13.05.12 Tension release (during trimming process)
Requirement
With the solenoid 1 activated, the tension disks 3 must be at least 0.5 mm apart.
13 - 34
1
2
3

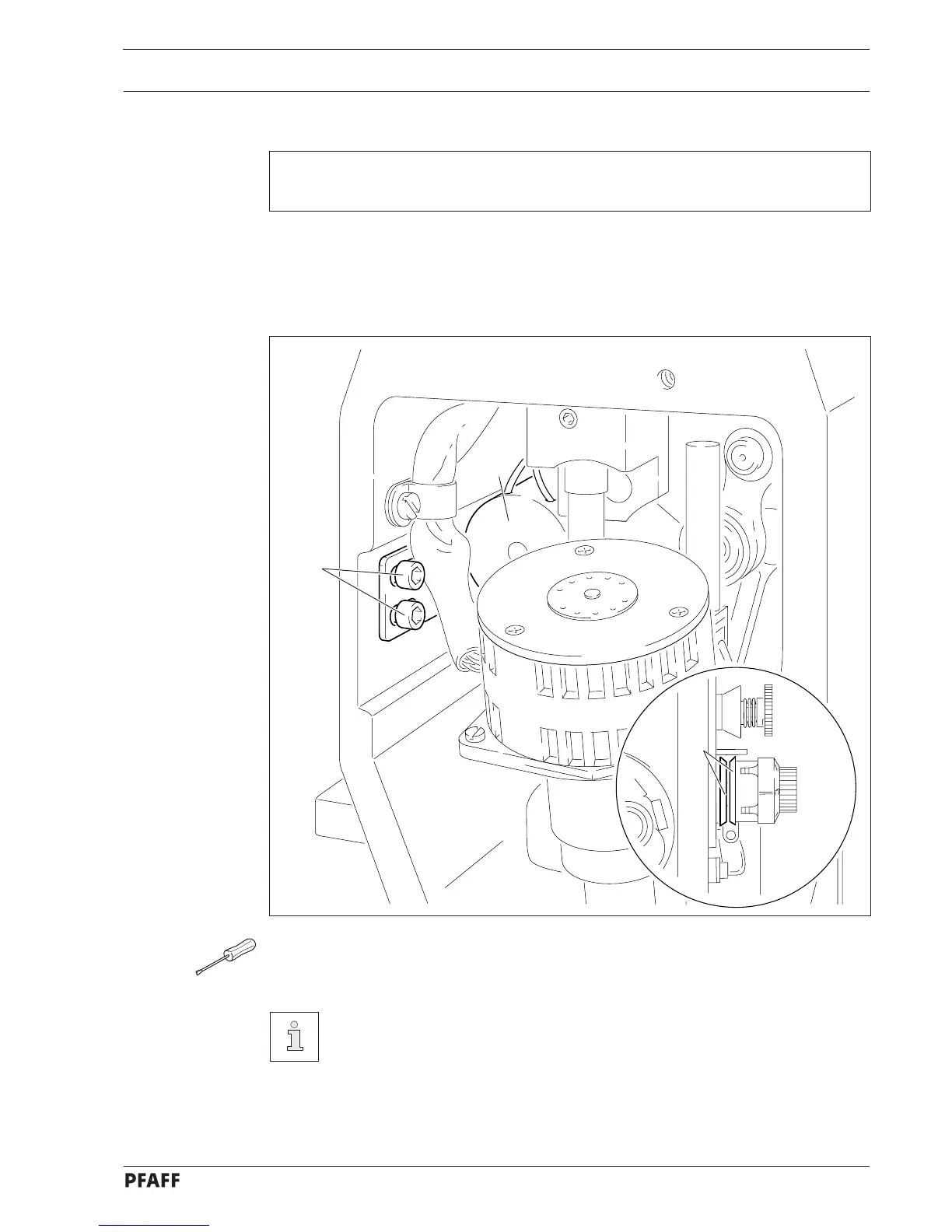

Fig. 13 - 30
● Activate solenoid 1.
● Move solenoid 1 (screws 2) in accordance with the requirement.
The timing of the tension release can be adjusted via the service functions
(see chapter 11.09 Summary of the service functions) and chapter 13.06
Parameter adjustments).
