Adjustment
13.05.04 Actuating lever
Requirement

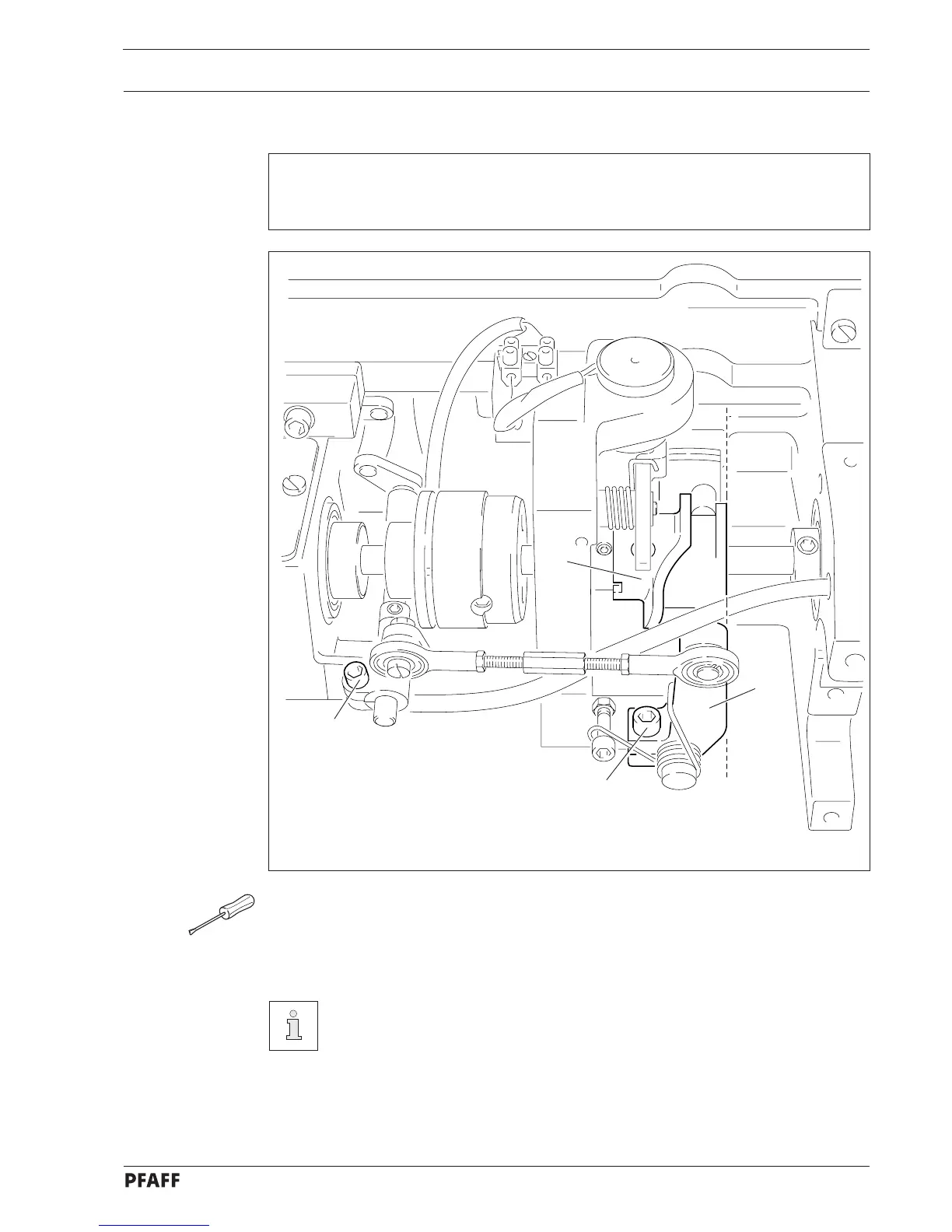

With the thread trimmer in resting position, the right hand side of the actuating lever 3
must be flush with the right side of control cam 4.
● Loosen screws 1 and 2.
● Move the actuating lever 3 in accordance with the requirement.
● Tighten screw 1.
● Slightly tighten screw 2.
Screw 2 remains slightly tightened for further adjustments.
Fig. 13 - 22
2
1
3
4
13 - 26
