Pfaff 421E1 - Connecting Rod

Adjustment
13.05.05 Connecting rod
Requirement
The distance between the centers of the two ball joints of the connecting rod 1 must be
100 mm.
● Turn connecting rod 1 (nuts 2 and 3, right and left handed threads) in accordance with
the requirement.

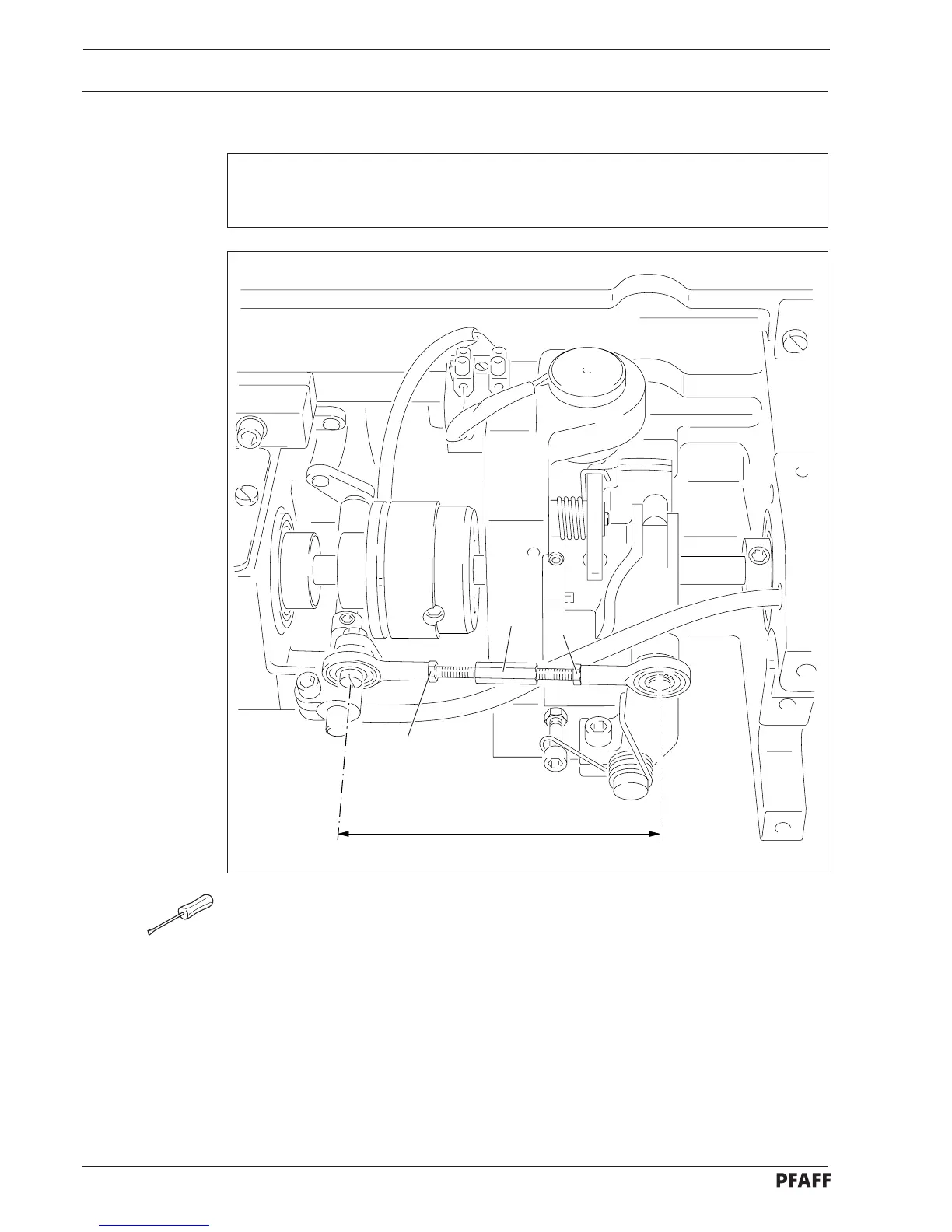

Fig. 13 - 23
100 mm
2
3
1
13 - 27
