Pfaff 8310-041 - Controls Overview; Summary of Control Elements

Controls
16

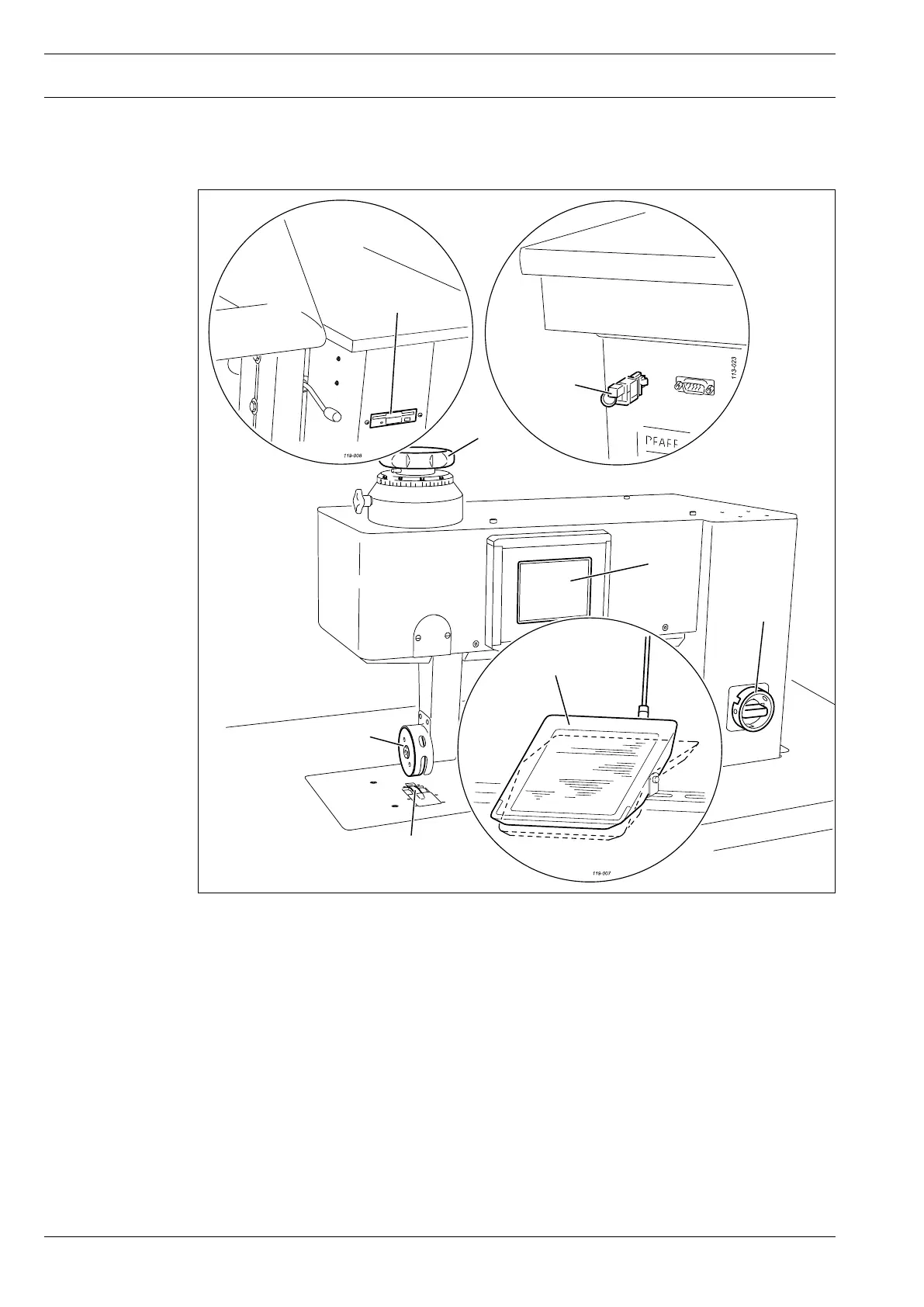

The machine has the following control elements:
Main switch 1, see Chapter 7.02
Pedal 2, see Chapter 7.03
Adjustment wheel 3 for roller clearance, see Chapter 7.04
Control panel 4, see Chapter 7.05
Top roller 5
Bottom roller 6
Key switch 7, see Chapter 11.03.03 Rights of access
Disk drive 8
●
●
●
●
●
●
●
●
