Adjustment
67
13.04 Changing the top feed roller on the flat-bed version
After being dismounted, feed roller 3 must be stored carefully!
Any minor damage to the roller has a negative effect on the sealing result!
Lock feed roller 1 with an Allen key (SW 4) by passing the Allen key from the right
through the hole in the post and turning feed roller 1, until the Allen key clicks into place.
Loosen feed roller 2 with a spanner wrench and twist it out.
Pull off feed roller 3 and keep it in a safe place.
Slide the new feed roller onto the shaft, hold it tightly and screw feed roller 2 into place.
Remove the Allen key.
Set the clearance of the sonotrode to feed roller 3 as described in Chapter 13.06 Feed
roller clearance.
Check the position of the sonotrode with regard to feed roller 3 as described in Chapter
13.07 Position of the feed rollers, and adjust it if necessary.
●
●
●
●
●
●
●

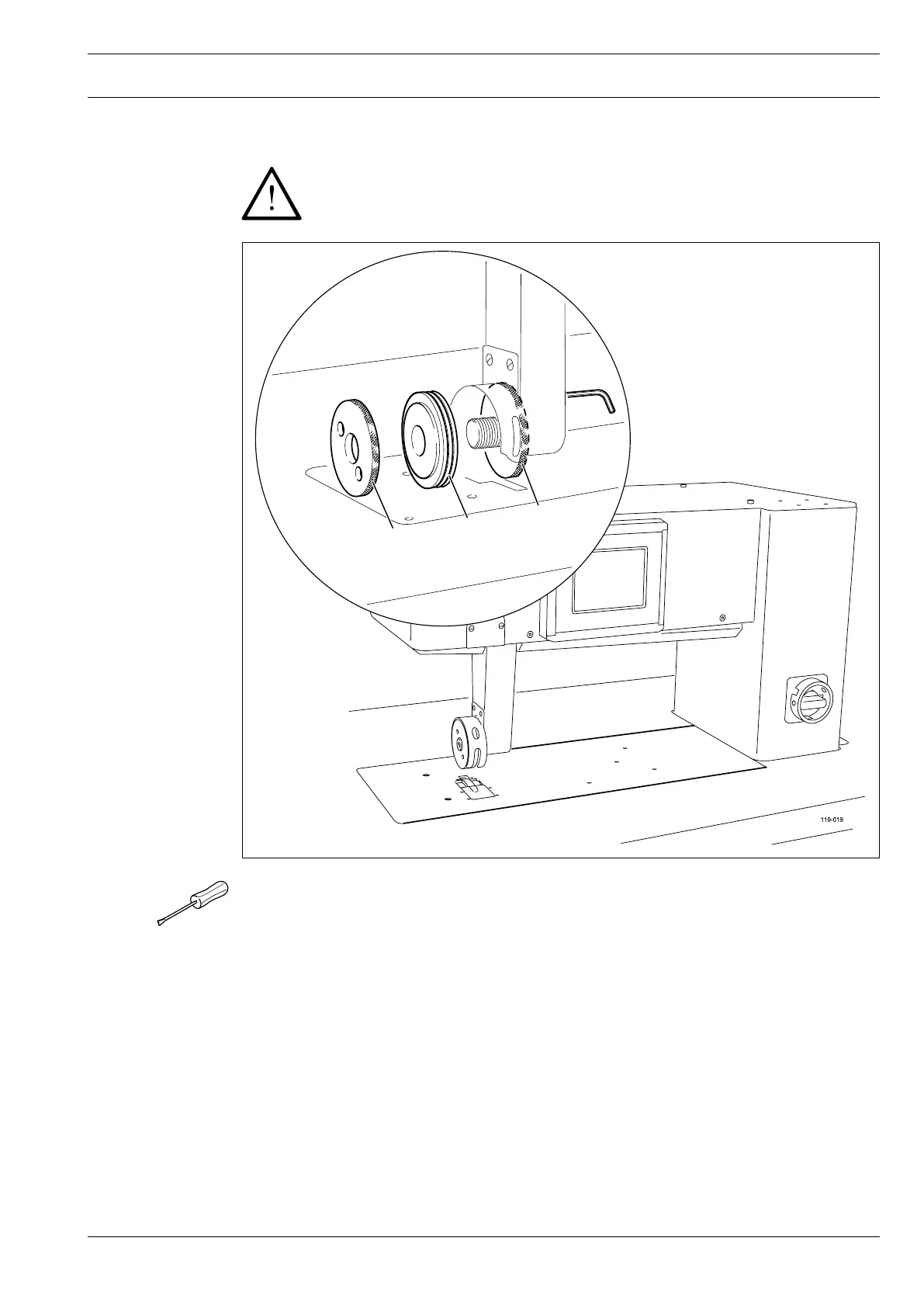

Fig. 13 - 01
2
3
1
