Adjustment
69
13.06 Feed roller clearance
Switch on the machine.
Obere Transportrolle absenken.
Lower the top feed roller.
With the aid of a feeler gauge (0.1 mm) set the clearance between the feed rollers by tur-
ning adjustment wheel 1 (screw 2) to 0.1 mm.
Turn the scale dial 3 (screw 4) so that the value“0.1" shows on the marking on the machi-
ne case.
Switch off the machine.
When the generator is switched on, the feed rollers must never be in direct
contact with each other! Danger of severe damage to the equipment!
●
●
●
●
●
●
Requirement
The scale setting on adjustment wheel 1 should correspond to the actual clearance bet-
ween the feed rollers.

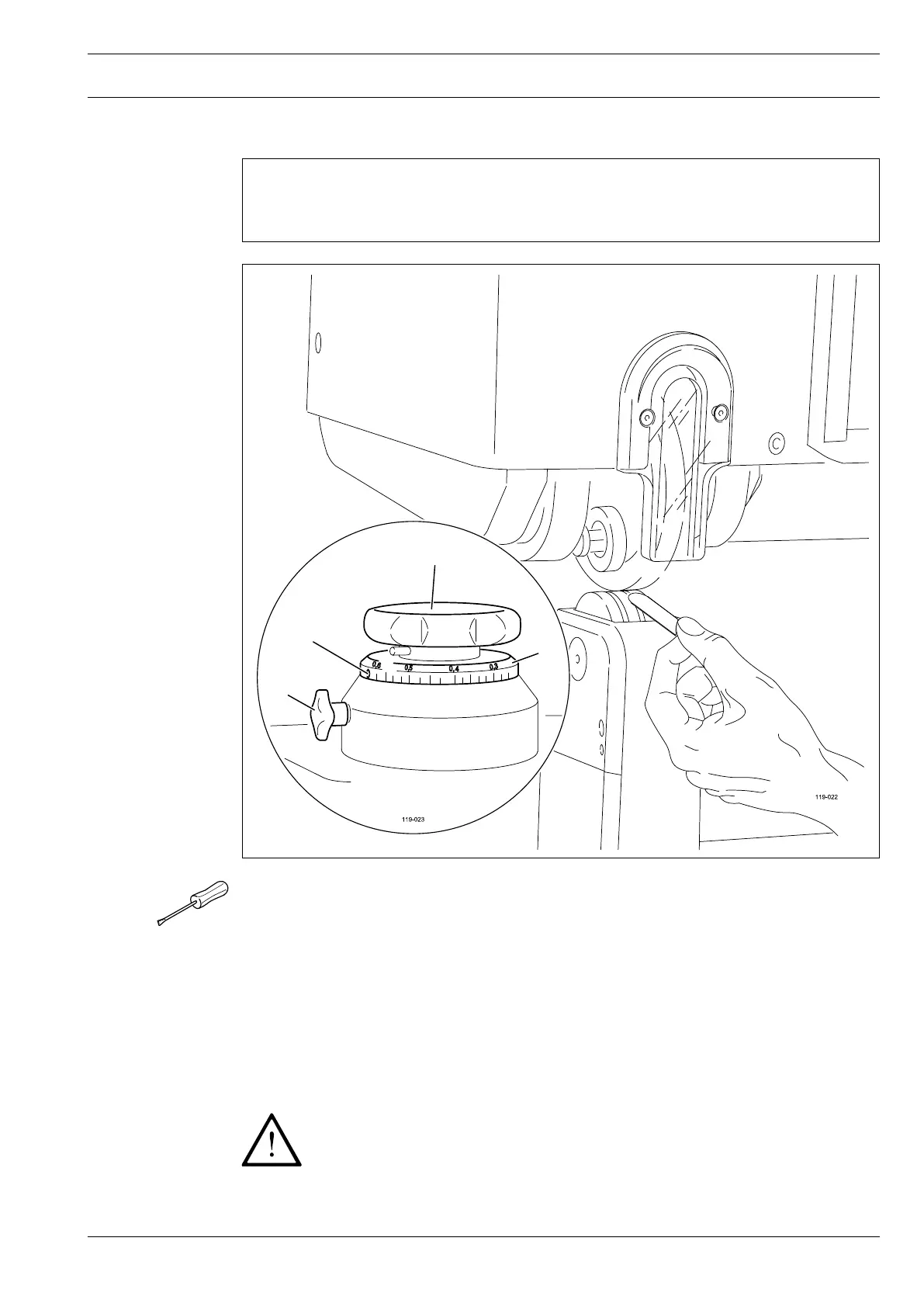

Fig. 13 - 03
2
1
3
4
