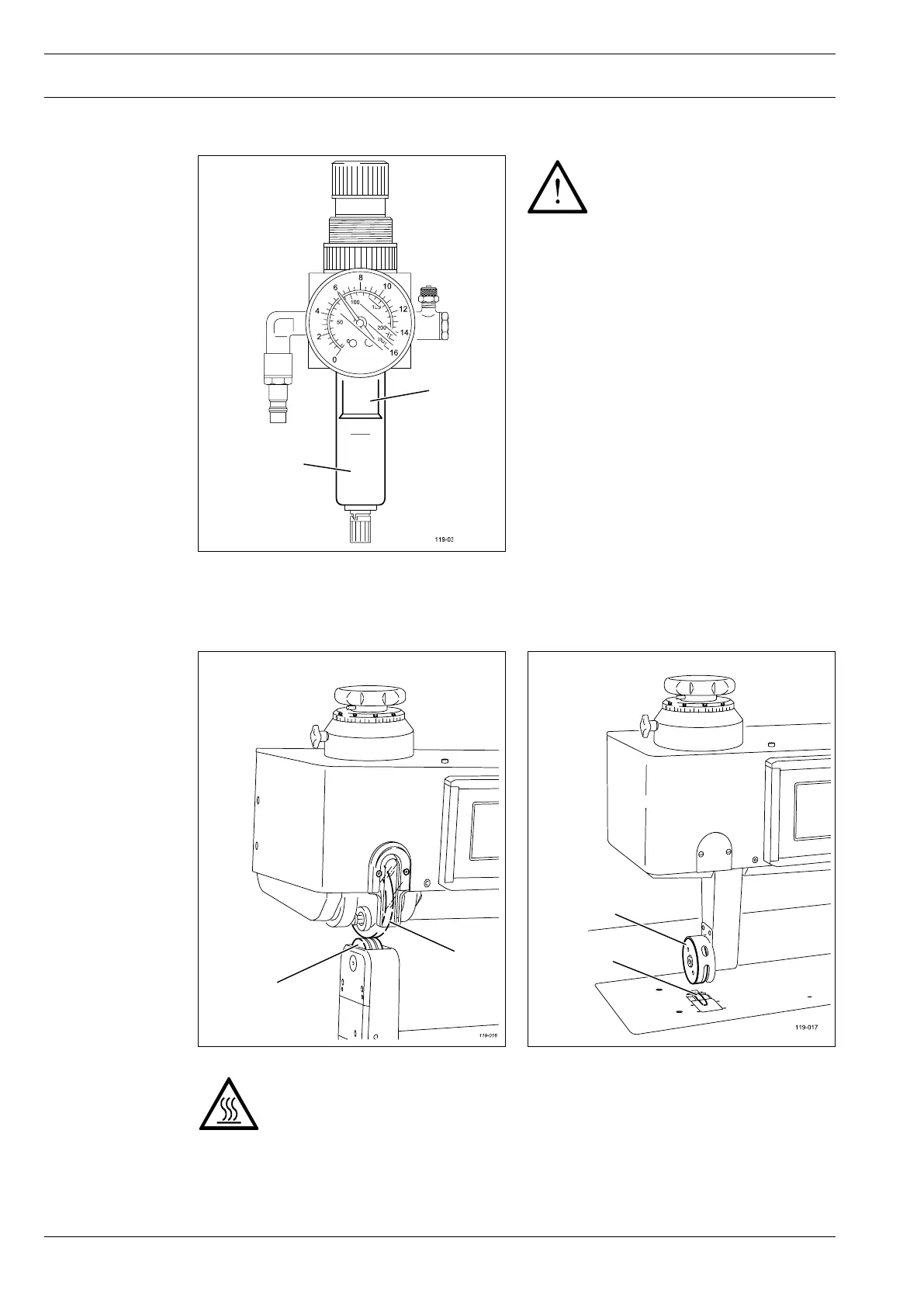

.03 Cleaning the air filter of the air-filter/lubricator
Switch the machine off!
Disconnect the air hose at the
air-filter/lubricator.
To drain water bowl 1:
Water bowl 1 drains itself automatically
whe the compressed-air hose is discon-
nected from the air-filter/lubricator.
Cleaning filter 2:
Unscrew water bowl 1.
Take out filter 2.
Clean filter 2 with compressed air or iso-
propyl alcohol (part No. 95-665 735-91).
Screw in filter 2 and screw on water
bowl 1.
●
●
●
●
●
Fig. 12 - 02
1
12.04 Cleaning the feed rollers
Switch off the machine and let it cool down!
Danger of burns when touching the sonotrode!
When necessary, remove any sealing residues left on the top and bottom feed rollers 1
and 2.
●
Fig. 12 - 03 Fig. 12 - 04
2
1
2
1
