8 Installation and commissioning
After the machine has been unpacked, check it for any damages caused during transportati-
on. If there are any damages, please notify the transport company and your
local PFAFF agency.
The machine must only be installed and commissioned by qualified personnel.
All relevant safety regulations must be strictly adhered to!
8.01 Installation
Suitable connections for electricity and compressed air must be available at the machine’s lo-
cation (see Chapter 3 Specifications). An even and firm foundation as well as sufficient
lighting must also be available at the machine’s location.
8.01.01 Setting up the PFAFF 8310-041/001 and the PFAFF 8310-041/002
Slide the machine off the pallet.
Turn the six legs 1 to level the machine horizontally.
Connect the plugs from pedal 2 and from any existing foot switches to the control box.
Loosen screws 3 and 4 and adjust the height of the machine by turning crank 5.
Well tighten screws 3 and 4 again.
●
●
●
●
●

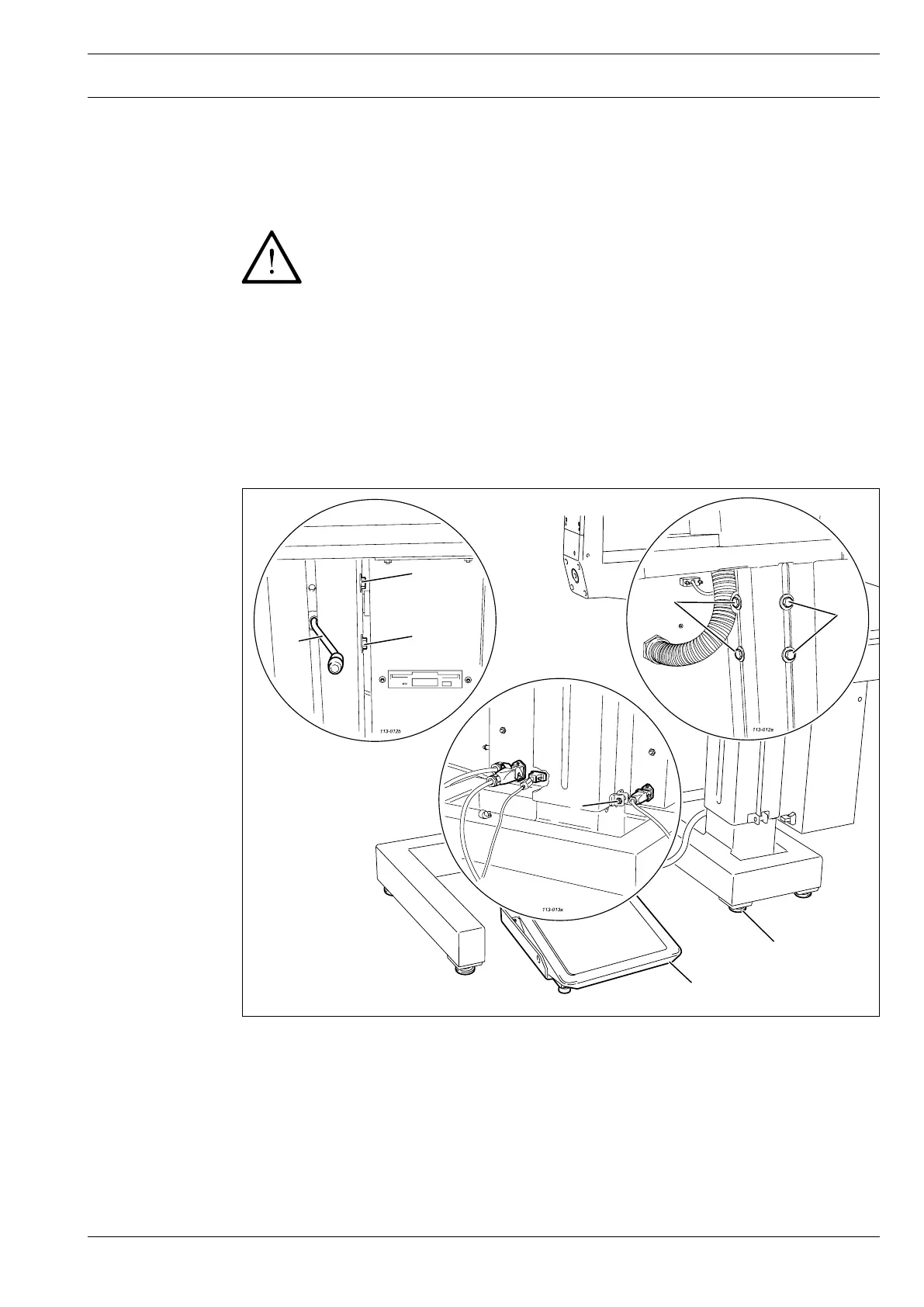

Fig. 8 - 01
1
2
3
4
5
4
4
4
