Pfaff creative 1.5 User Manual

Maintenance

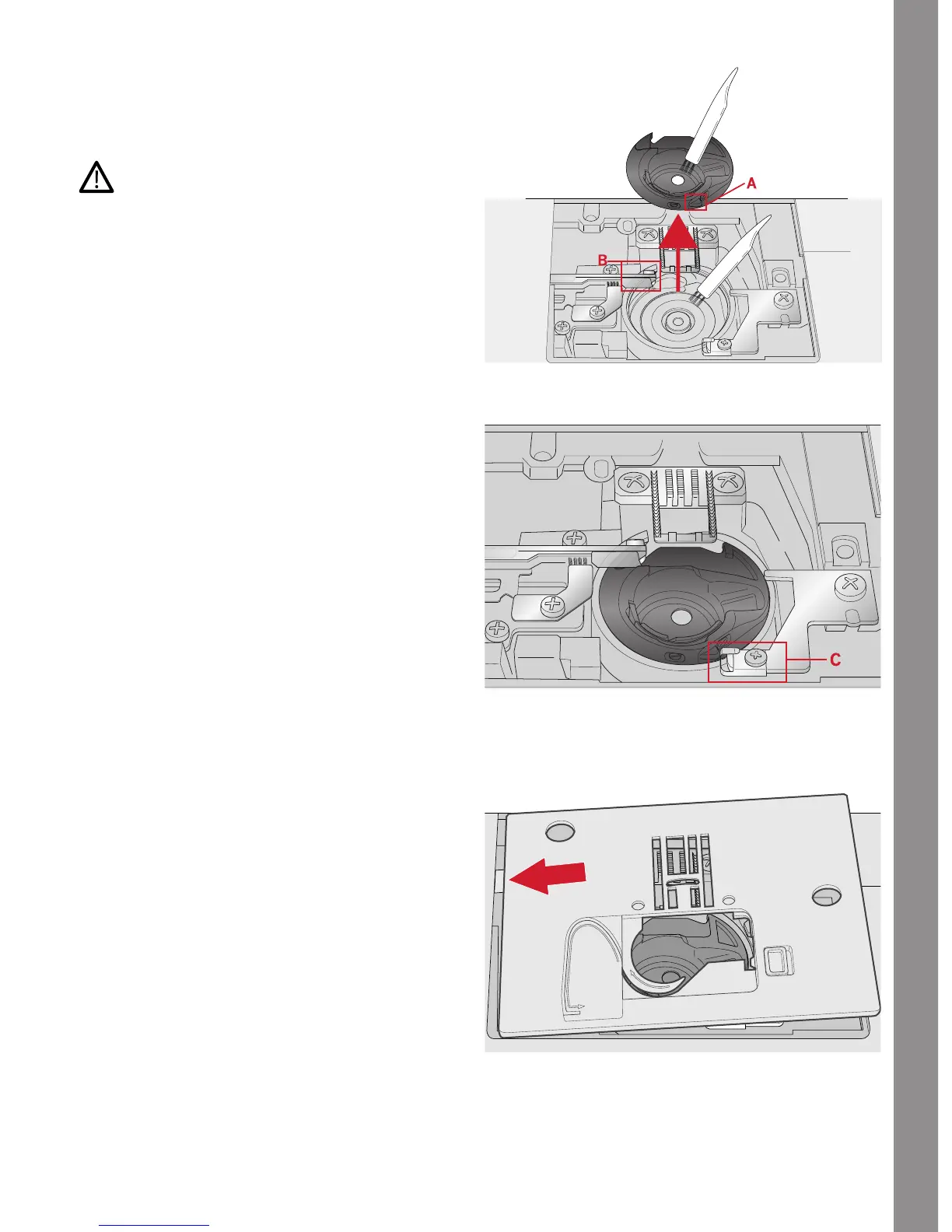

Cleaning Under the Bobbin Area
A. Tip of bobbin holder
B. Knife
C. Stopper
Clean the area under the bobbin case after sewing
several projects or any time you notice an accumulation
of lint in the bobbin case area. Remove the bobbin case
by lifting it up. Clean the area with the brush or a dry
cloth.
Use caution when cleaning around the thread snips
knife (B).
Put the bobbin case in place so that the tip (A) fits into
the stopper (C).
Note: Do not blow air into the bobbin case area. The dust and
lint will be blown into your machine.
Note: When using the optional accessory PFAFF®
Embroidery Cutwork Needles, it is necessary to clean the
bobbin area after each embroidered design/project.
Replacing the Needle Plate
With the feed dogs lowered, replace the needle plate
and insert and tighten the two needle plate screws.
Replace the bobbin cover.
59

Pfaff creative 1.5 Specifications

General

Type	Sewing and Embroidery Machine
Sewing and Embroidery Machine	Yes
Embroidery Area	240 x 150 mm
Stitch Width	7 mm
USB Connectivity	Yes
Lighting	LED
Start/Stop Button	Yes
Speed Control	Yes
Bobbin Winding	Automatic
Memory	Yes
Software	Included
Free Arm	Yes
Number of Stitches	150
Weight	8.5 kg
Display Type	Color LCD Touchscreen
Presser Feet	Included
