3-3 3-3
SERVICE POSITIONS & REPAIR HINTS
1) During repair it is possible to disconnect the ECO6 Tuner
board, ETF6 Tape Module and/or CDC Module com-
pletely unless the fault is suspected to be in that area.
This will not affect the performance of the rest of the set.
2) For Service position C (repair on the ETF6 Tape module),
it is necessary to inter-change the flex wires for connec-
tor 1701 & 1706 because of wire length.
Note: The flex cables are very fragile, care should be taken
not to damage them during repair. After repair, be
very sure that the flex cables are inserted properly
into the flex sockets before encasing, otherwise faults
may occurs.

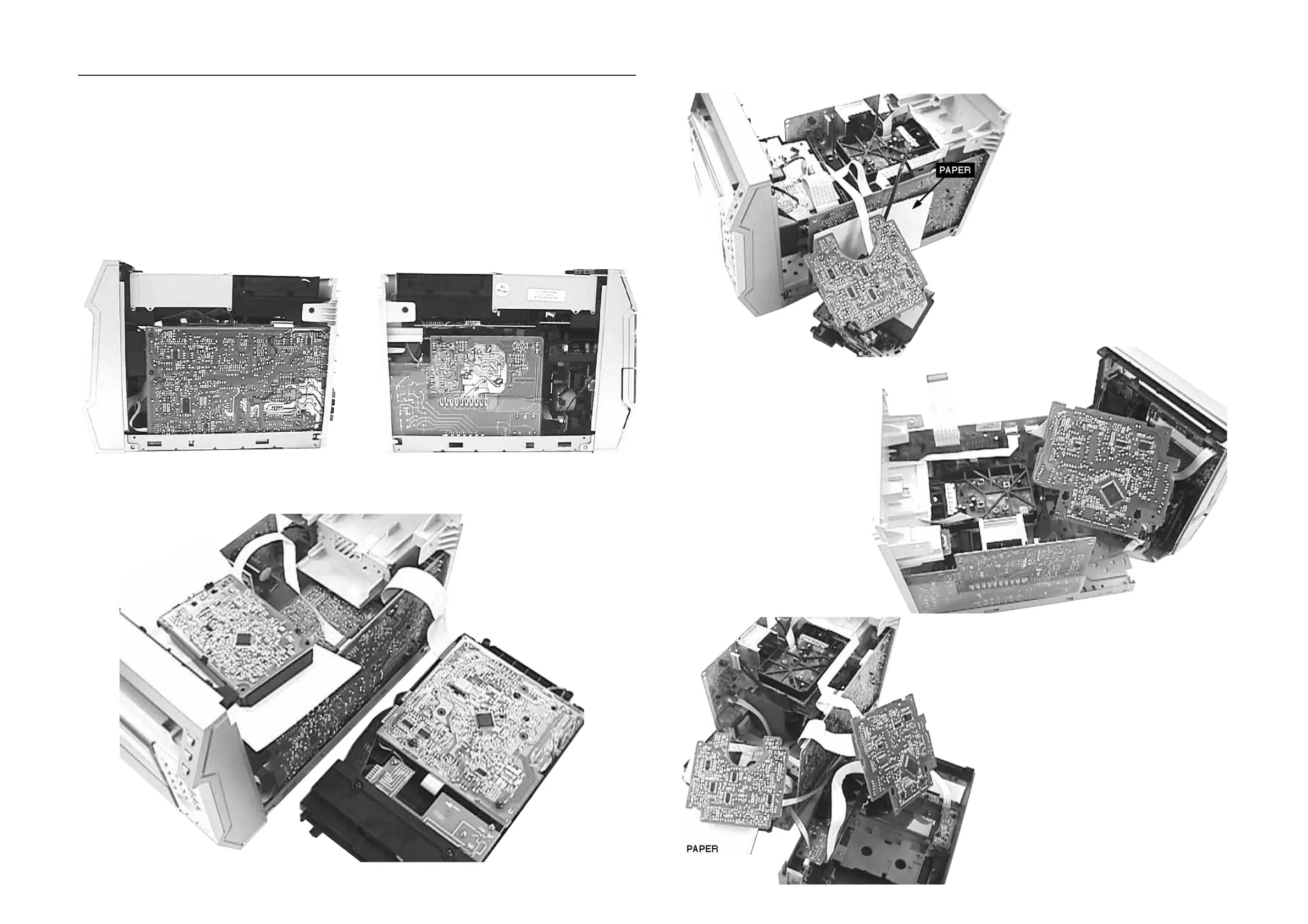

Service pos C
Service pos D
Service pos D
Service pos A
Service pos B
