Brief description
On the next pages various actions of the 3 Disc Tray Changer are described with simplified drawings.
1. Initial state. After Power on the changer is in this position.
The drawer closed
Carriage #1 is in Play position
Carriage #2 and #3 are in home position

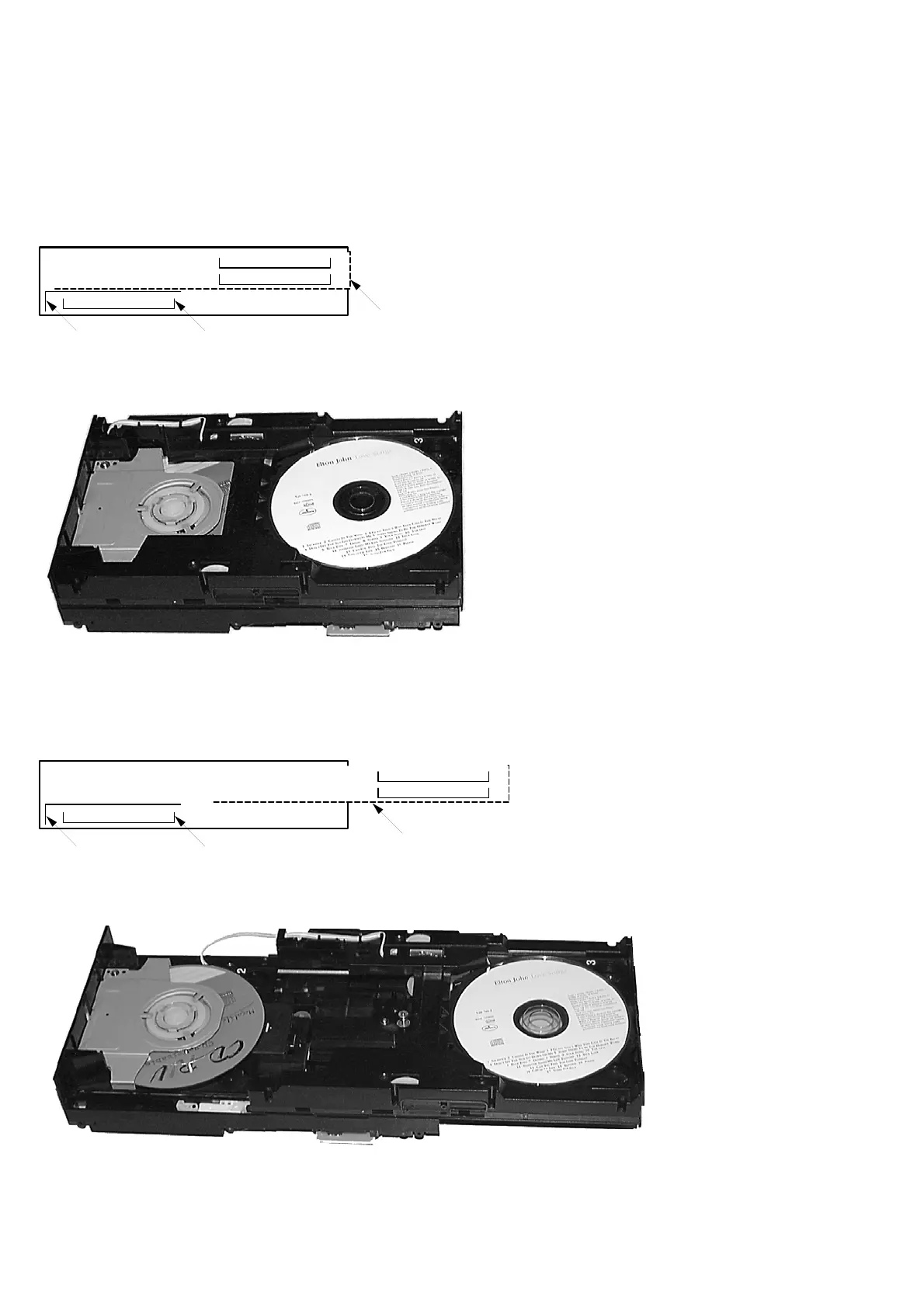

The Changer looks like
2. Tray open.
The Drawer is moved out
Carriage #2 and #3 remain in home position
The Changer looks like
2
3
1
Carriage
Drawer
Clamper
2
3
1
Carriage
Drawer
Clamper
