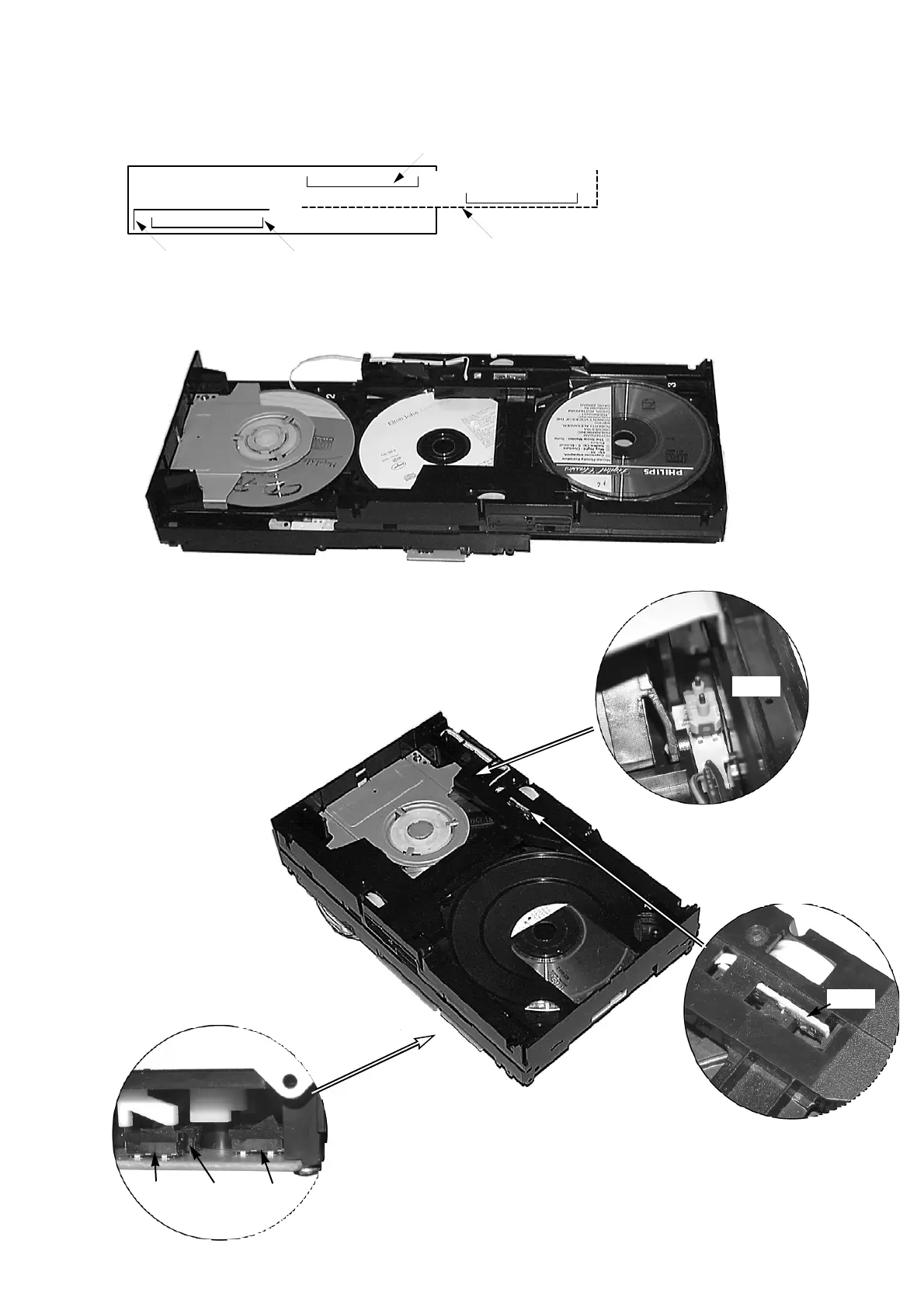

Philips MC-50/22 - Location of Switches

10-5
3. Carriage extra.
This position is necessary to get access to the lower carriage. It is also used during disc change.
The changer looks like
The various states are recognized by seven switches.
For functions see truth table on next page.
2
3
1
Carriage
Carriage extra position
Drawer
Clamper
SW8
SW7
SW6
SW2&3
SW4&5
Location of switches
