Philips MC-50/22 - Tape Mechanism

9-8 9-8

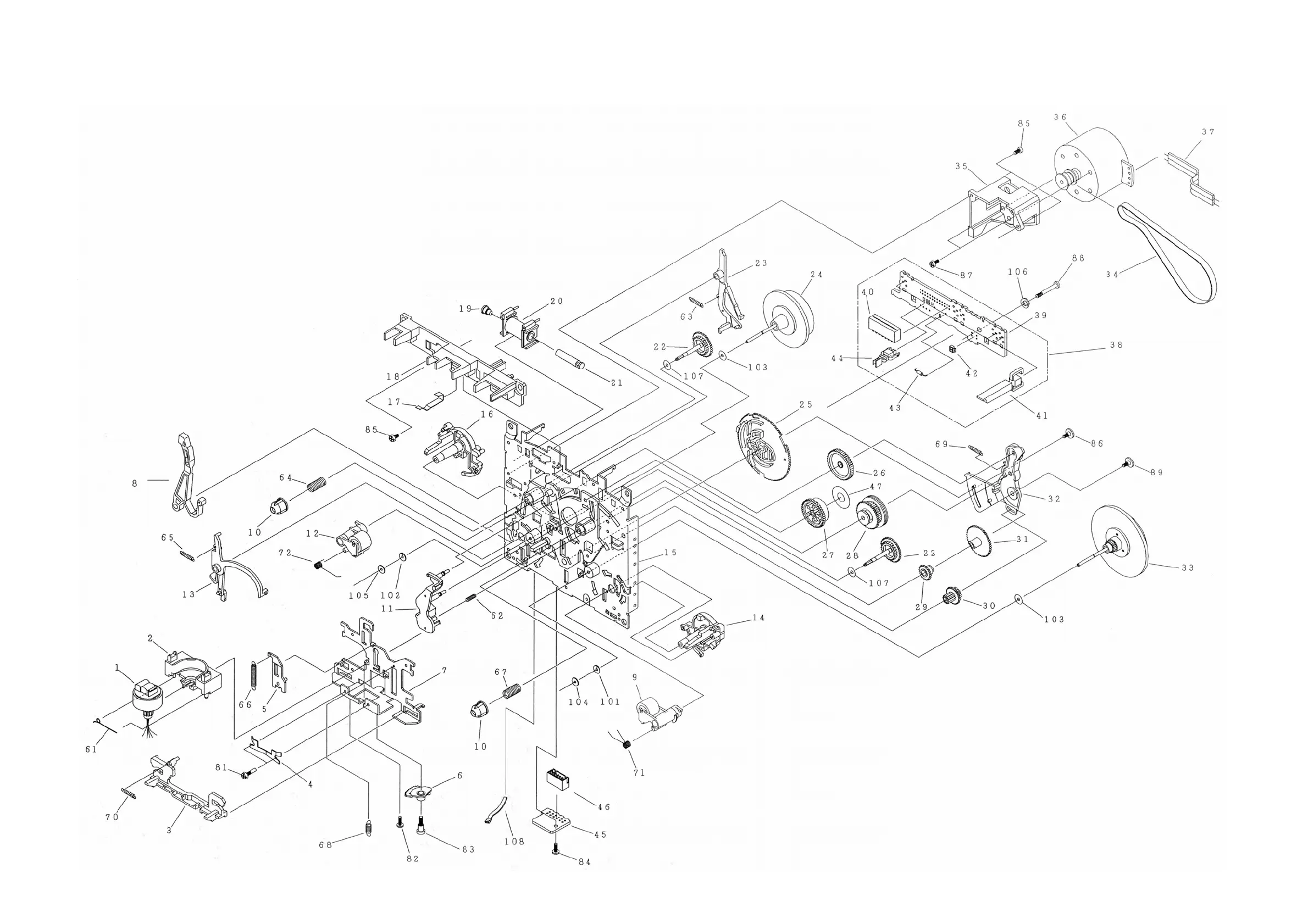

TAPE MECHANISM
1 9965 000 07828 Rec/Pb Head Assembly
9 9965 000 07829 Pinch Arm Assembly Right
12 9965 000 07830 Pinch Arm Assembly Left
20 4822 281 11069 Solenoid
24 9965 000 07831 Flywheel Assembly Left
25 9965 000 07822 Gear Cam
33 9965 000 07823 Flywheel Assembly Right
34 4822 358 10163 Belt
36 9965 000 07833 Motor Assembly
41 4822 278 90613 Leaf Switch
42 4822 130 10205 Photo Sensor
43 4822 116 83749 680R 5% 0,5W
44 4822 277 11749 Mode Switch
71 9965 000 07834 Spring
72 9965 000 07835 Spring
101 4822 532 12931 Washer
102 4822 532 12934 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
105 4822 532 12935 Washer
Note: Only the parts mentioned in this list are normal
service spare parts.
